Parts / Pricing / Submittals / CAD / PDF

You are here

Home » Parts / Pricing / Submittals / CAD / PDF

Description

General detail showing a typical installation with part# selection and dimension tables

PDFCAD

Inside Drop Manhole Detail - Existing Manhole Rehab

PDFCAD

Inside Drop Manhole Detail - New Construction

PDFCAD

Wet Well Inside Drop Detail

PDFCAD

Inside Drop Connection Detail

PDFCAD

Specifications

PDF

Installation Instructions

PDF

Made In America Letter

PDF
Description

General detail showing a typical installation with part# selection and dimension tables

photoPDFCAD
Description

Round Walled Structures - Detail showing dimensions and part #s for 4" and 6" outlet drop bowls

PDFCAD

Flat Walled Structures - Detail showing dimensions and part #s for 4" and 6" outlet drop bowls

PDFCAD
Part Number Description Manhole Diameter Outlet Width Weight Price

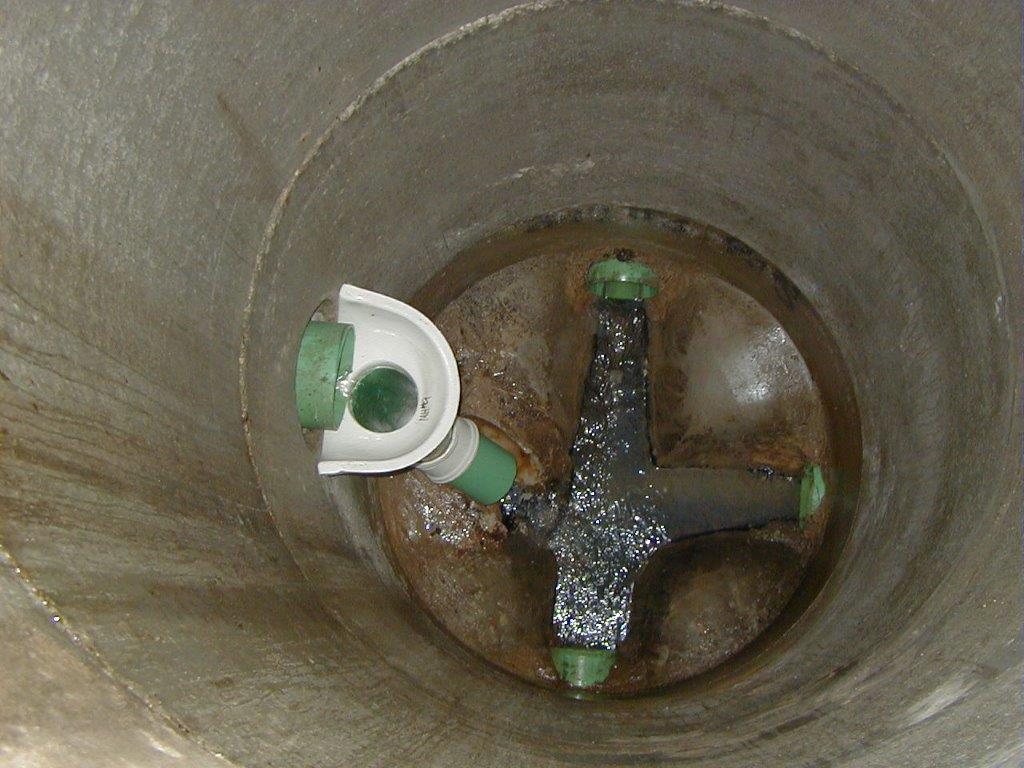

A4DB

"A" Drop Bowl - 4" outlet for 4' - 5' diameter manhole

 4.00-5.00 ft.
4 in.
12 in.
1.50 lb.
$223.37
A4R96

"A" Drop Bowl - 4" outlet for 6' - 8' diameter manhole

 6.00-8.00 ft.
4 in.
12 in.
2.00 lb.
$239.19
A4FDB

"A" Drop Bowl flat-back - 4" outlet
4 in.
12 in.
1.50 lb.
$239.19
A6DB

"A" Drop Bowl - 6" outlet for 4' - 5' diameter manhole

 4.00-5.00 ft.
6 in.
12 in.
2.00 lb.
$240.81
A6R96

"A" Drop Bowl - 6" outlet for 6' - 8' manhole

 6.00-8.00 ft.
6 in.
12 in.
2.00 lb.
$252.86
A6FDB

"A" Drop Bowl flat-back - 6" outlet
6 in.
12 in.
2.00 lb.
$252.86
Description

Round Walled Structures - Detail showing dimensions and part #s for 8" and 10" outlet drop bowls

PDFCAD

Flat Walled Structures - Detail showing dimensions and part #s for 8" and 10" outlet drop bowls

PDFCAD
Part Number Description Manhole Diameter Outlet Width Weight Price
B8DB

"B" Drop Bowl - 8" outlet for 4' - 5' diameter manhole

 4.00-5.00 ft.
8 in.
18 in.
3.00 lb.
$259.69
B8DBR84

"B" Drop Bowl - 8" outlet for 6' - 8' diameter manhole

 6.00-8.00 ft.
8 in.
18 in.
3.00 lb.
$287.03
B8R144

"B" Drop Bowl - 8" outlet for 9' - 12' diameter manhole

 9.00-12.00 ft.
8 in.
18 in.
3.00 lb.
$287.03
B8FDB

"B" Drop Bowl flat-back - 8" outlet
8 in.
18 in.
3.00 lb.
$287.02
B10DB

"B" Drop Bowl - 10" outlet for 4' - 5' diameter manhole

 4.00-5.00 ft.
10 in.
18 in.
3.00 lb.
$293.86
B10R96

"B" Drop Bowl - 10" outlet for 6' - 8' diameter manhole

 6.00-8.00 ft.
10 in.
18 in.
3.00 lb.
$307.53
B10R144

"B" Drop Bowl - 10" outlet for 9' - 12' diameter manhole

 9.00-12.00 ft.
10 in.
18 in.
3.00 lb.
$307.53
B10FDB

"B" Drop Bowl - flat back - 10" outlet
10 in.
18 in.
3.00 lb.
$307.53
Description

Round Walled Structures - Detail showing dimensions and part #s for 12" and 15" outlet drop bowls

photoPDFCAD

Flat Walled Structures - Detail showing dimensions and part #s for 12" and 15" outlet drop bowls

PDFCAD
Part Number Description Manhole Diameter Outlet Width Weight Price

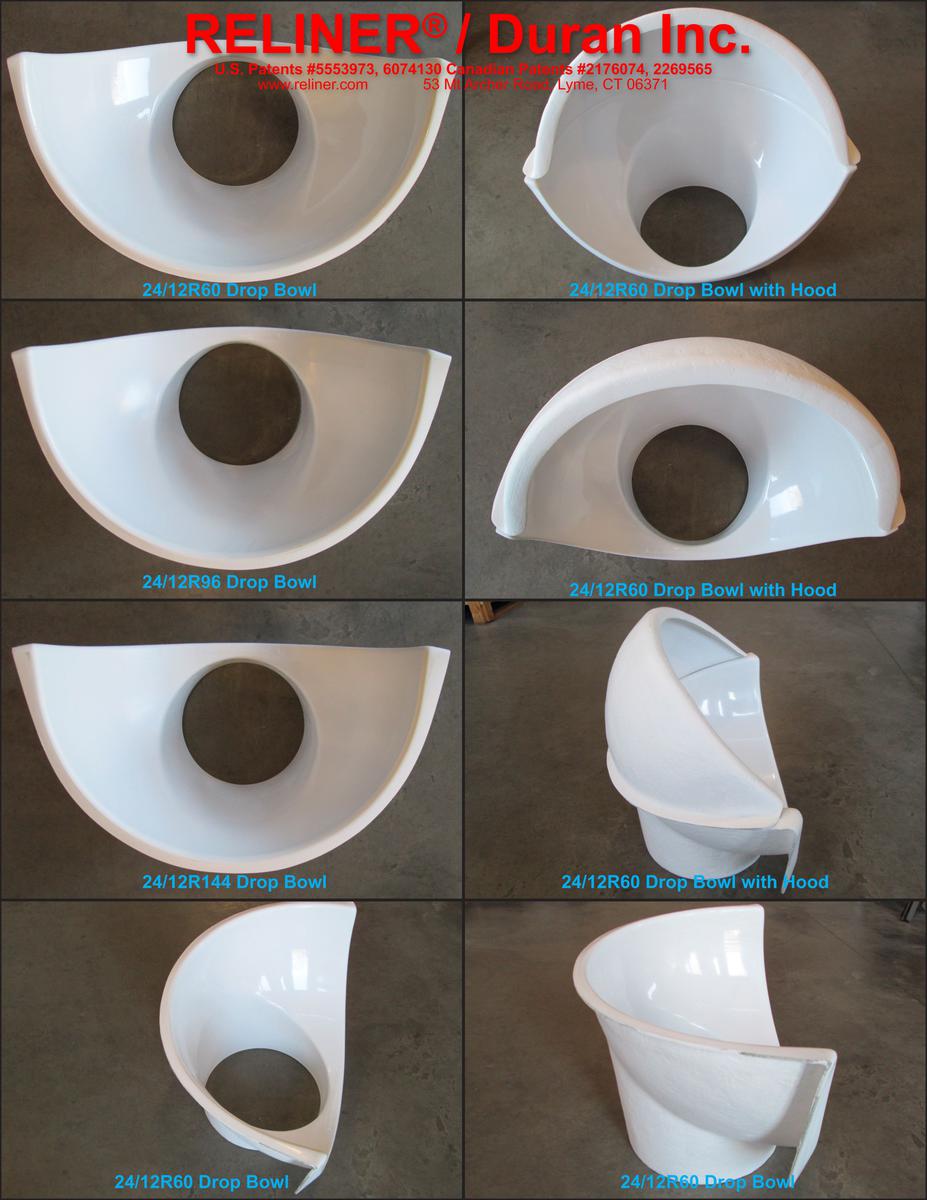

24/12R60

24" Drop Bowl - 12" outlet for 4' - 6' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 4.00-6.00 ft.
12 in.
24 in.
7.00 lb.
$580.89
24/12R96

24" Drop Bowl - 12" outlet for 7' - 8' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 7.00-8.00 ft.
12 in.
24 in.
7.00 lb.
$601.39
24/12R144

24" Drop Bowl - 12" outlet for 9' - 12' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 9.00-12.00 ft.
12 in.
24 in.
6.00 lb.
$601.39
24/12FDB

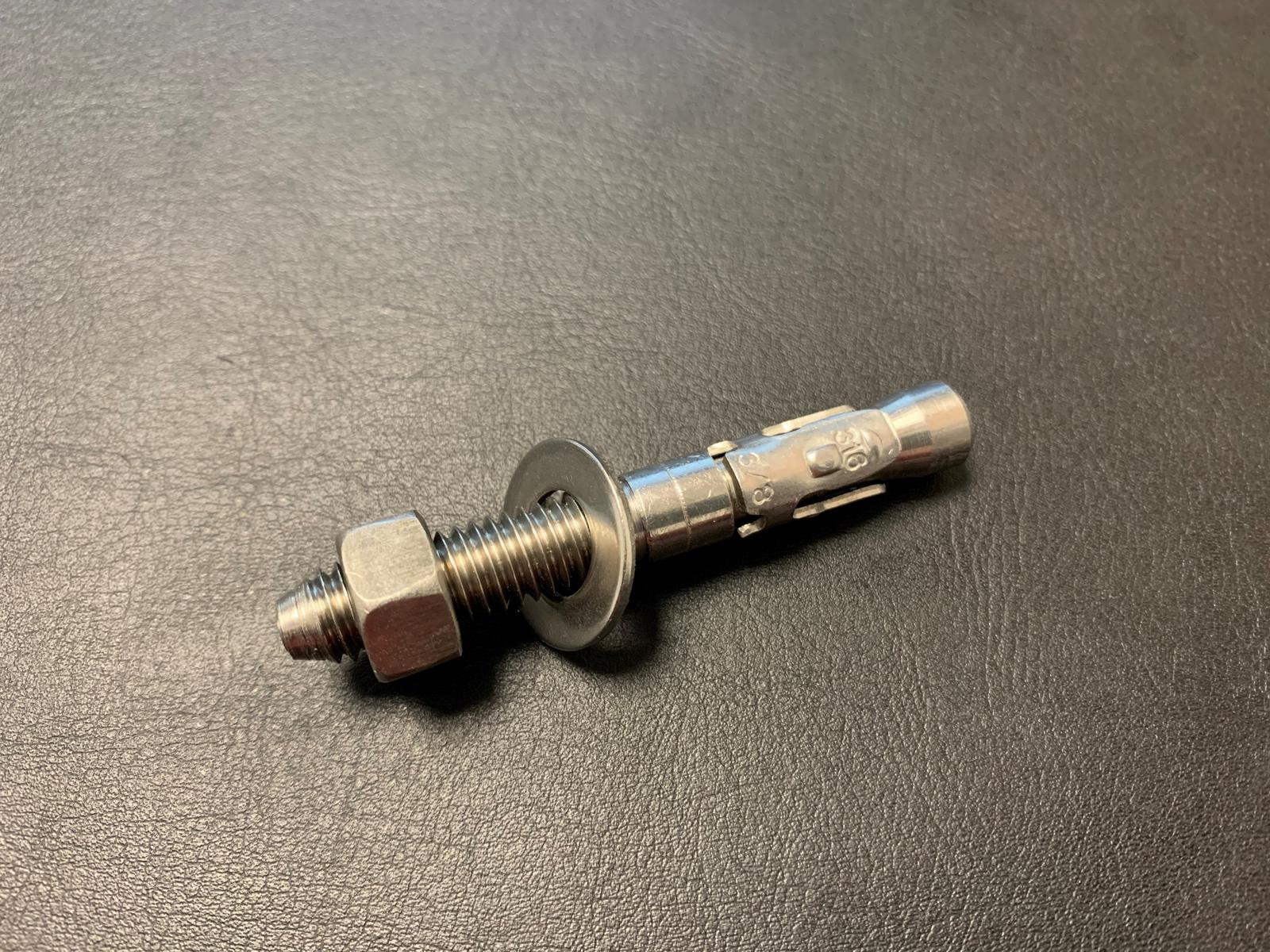

 24"  Drop Bowl flat-back - 12" outlet - requires (6) 3/8" x 1" anchor bolts
12 in.
24 in.
7.00 lb.
$601.40
24/15R60

24" Drop Bowl - 15" outlet for 4' - 6' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 4.00-6.00 ft.
15 in.
24 in.
7.00 lb.
$676.57
24/15R96

24" Drop Bowl - 15" outlet for 7' - 8' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 7.00-8.00 ft.
15 in.
24 in.
7.50 lb.
$699.17
24/15R144

24" Drop Bowl - 15" outlet for 9' - 12' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 9.00-12.00 ft.
15 in.
24 in.
8.00 lb.
$699.17
24/15FDB

 24"  Drop Bowl flat-back - 15" outlet - requires (6) 3/8" x 1" anchor bolts
15 in.
24 in.
7.00 lb.
$699.17
Description

Flat Walled Structures - Detail showing dimensions and part #s for 18" outlet drop bowls

PDFCAD

Round Walled Structures - Detail showing dimensions and part #s for 18" outlet drop bowls

photoPDFCAD
Part Number Description Manhole Diameter Outlet Width Weight Price

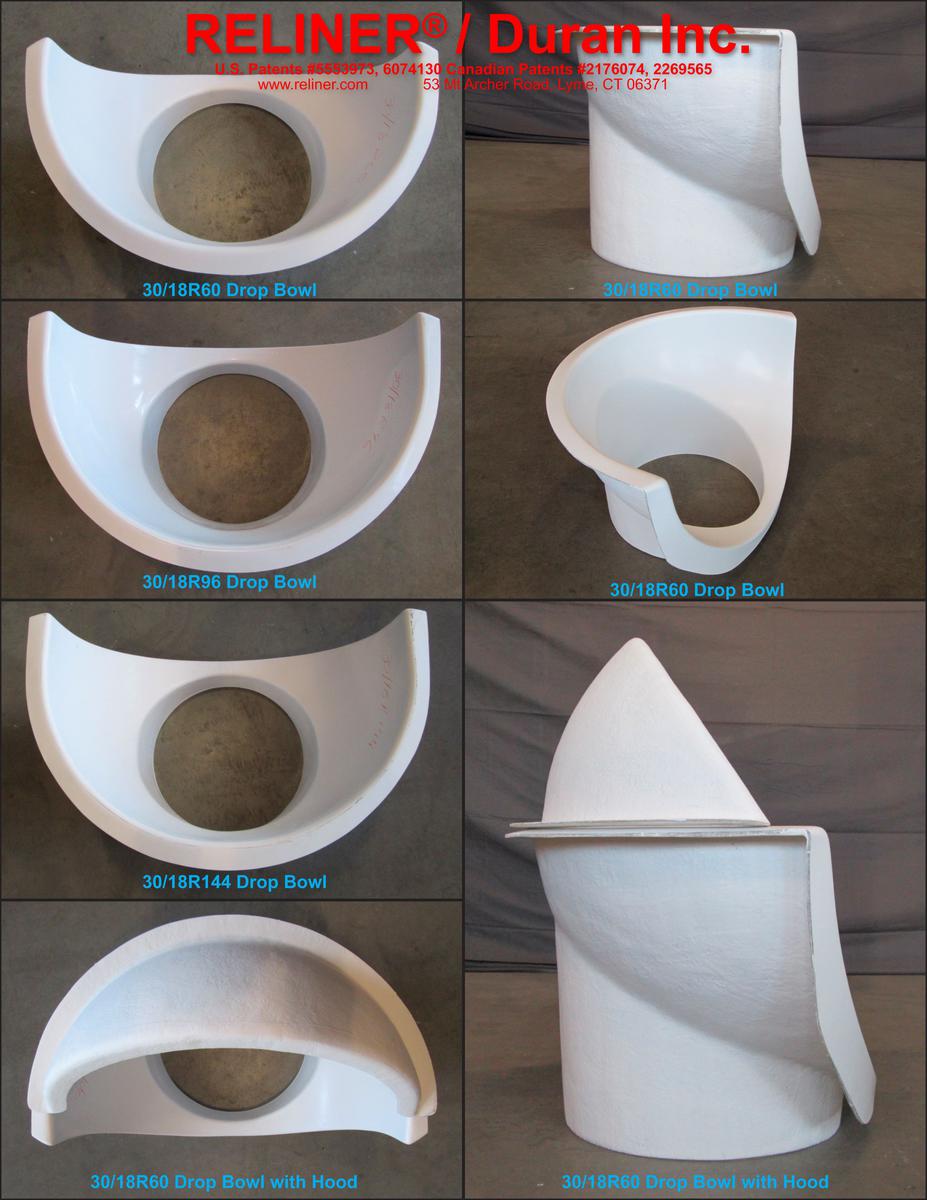

30/18R60

30" Drop Bowl - 18" outlet for 5' - 6' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 5.00-6.00 ft.
18 in.
30 in.
10.00 lb.
$785.91
30/18R96

30" Drop Bowl - 18" outlet for 7' - 8' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 7.00-8.00 ft.
18 in.
30 in.
10.00 lb.
$804.62
30/18R144

30" Drop Bowl - 18" outlet for 9' - 12' diameter manhole - requires (6) 3/8" x 1" anchor bolts

 9.00-12.00 ft.
18 in.
30 in.
9.50 lb.
$804.62
30/18FDB

30"  Drop Bowl flat-back - 18" outlet - requires (6) 3/8" x 1" anchor bolts
18 in.
30 in.
11.00 lb.
$804.62
Description

Flat Walled Structures - Detail showing dimensions and part #s for 21" and 24" outlet drop bowls

photoPDFCAD

Round Walled Structures - Detail showing dimensions and part #s for 21" and 24" outlet drop bowls

photoPDFCAD
Part Number Description Manhole Diameter Outlet Width Weight Price

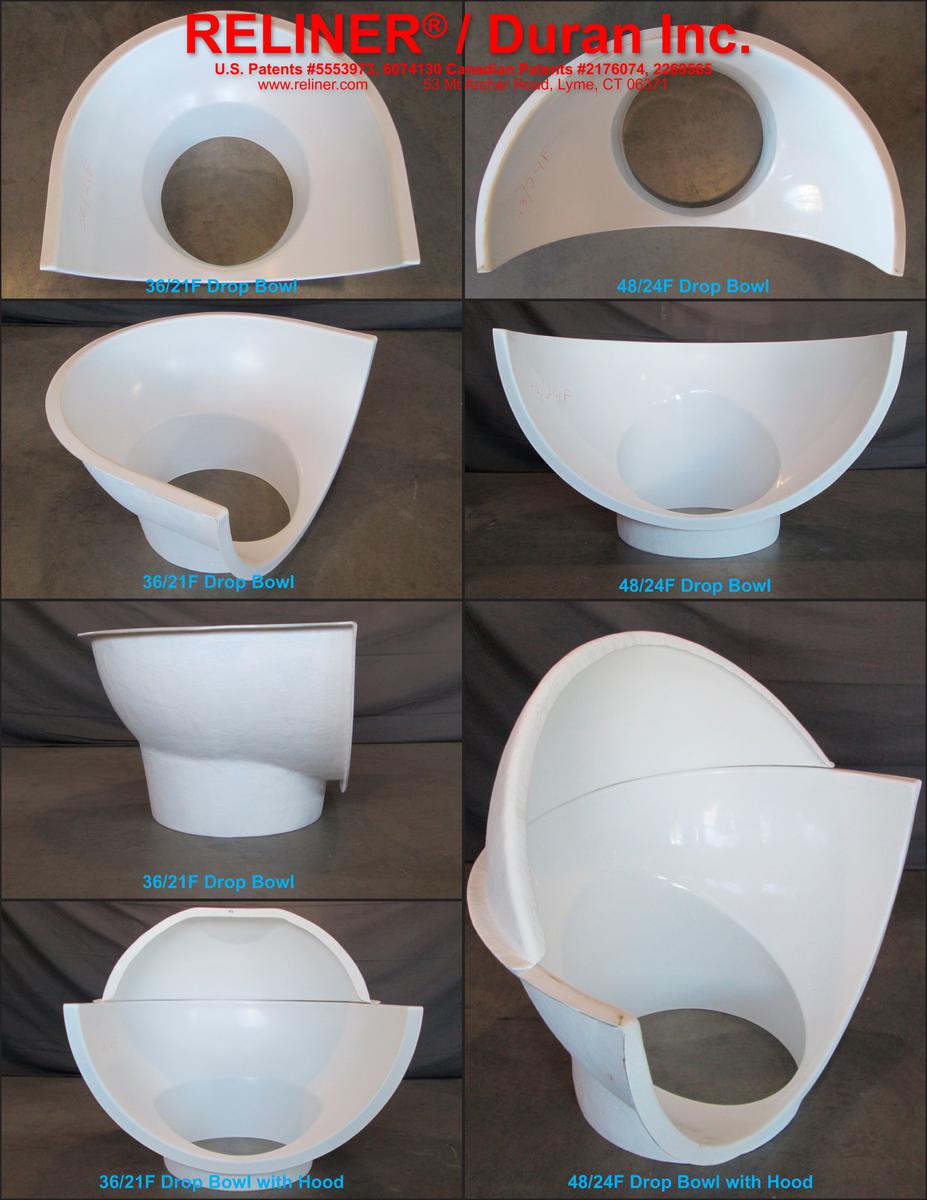

36/21R60

36" Drop Bowl - 21" outlet for 5' diameter manhole - requires (8) 3/8" x 3" anchor bolts

 5.00-5.00 ft.
21 in.
36 in.
18.00 lb.
$1251.41
36/21R144

36" Drop Bowl - 21" outlet for 9' - 12' diameter manhole - requires (8) 3/8" x 3" anchor bolts

 9.00-12.00 ft.
21 in.
36 in.
18.00 lb.
$1342.48
36/21FDB

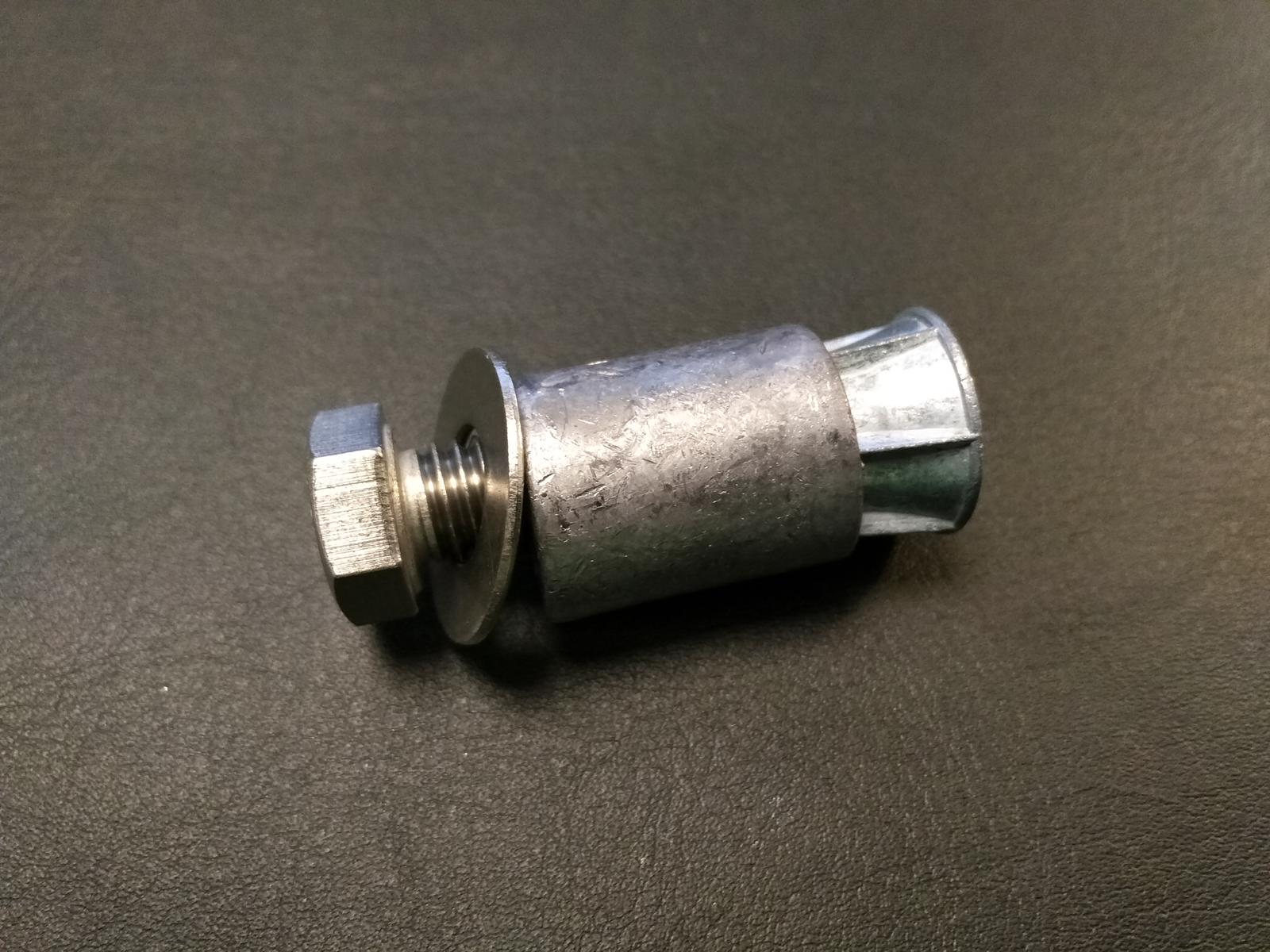

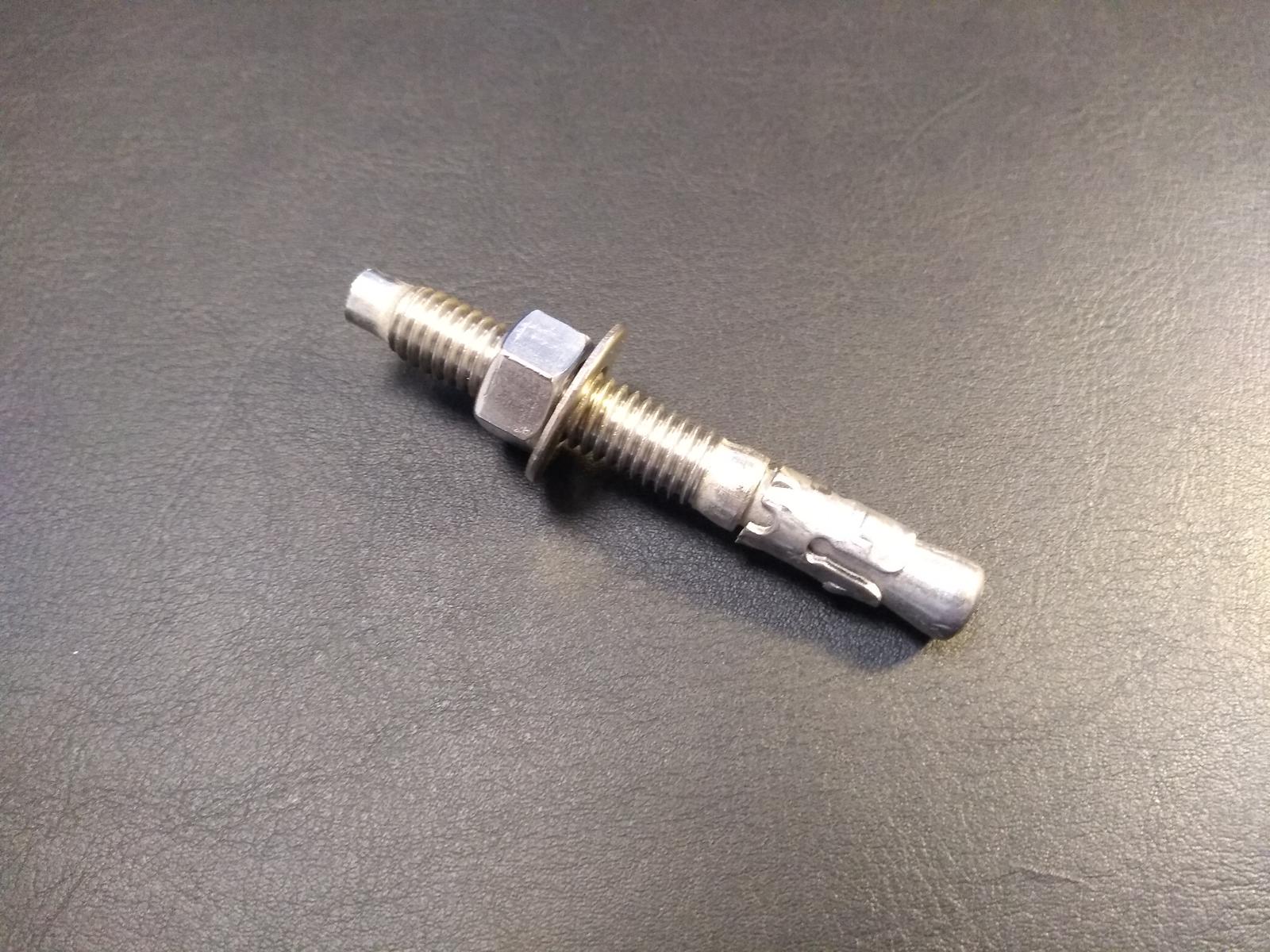

36"  Drop Bowl flat-back - 21" outlet - requires (8) 3/8" x 3" anchor bolts
21 in.
36 in.
18.00 lb.
$1342.48

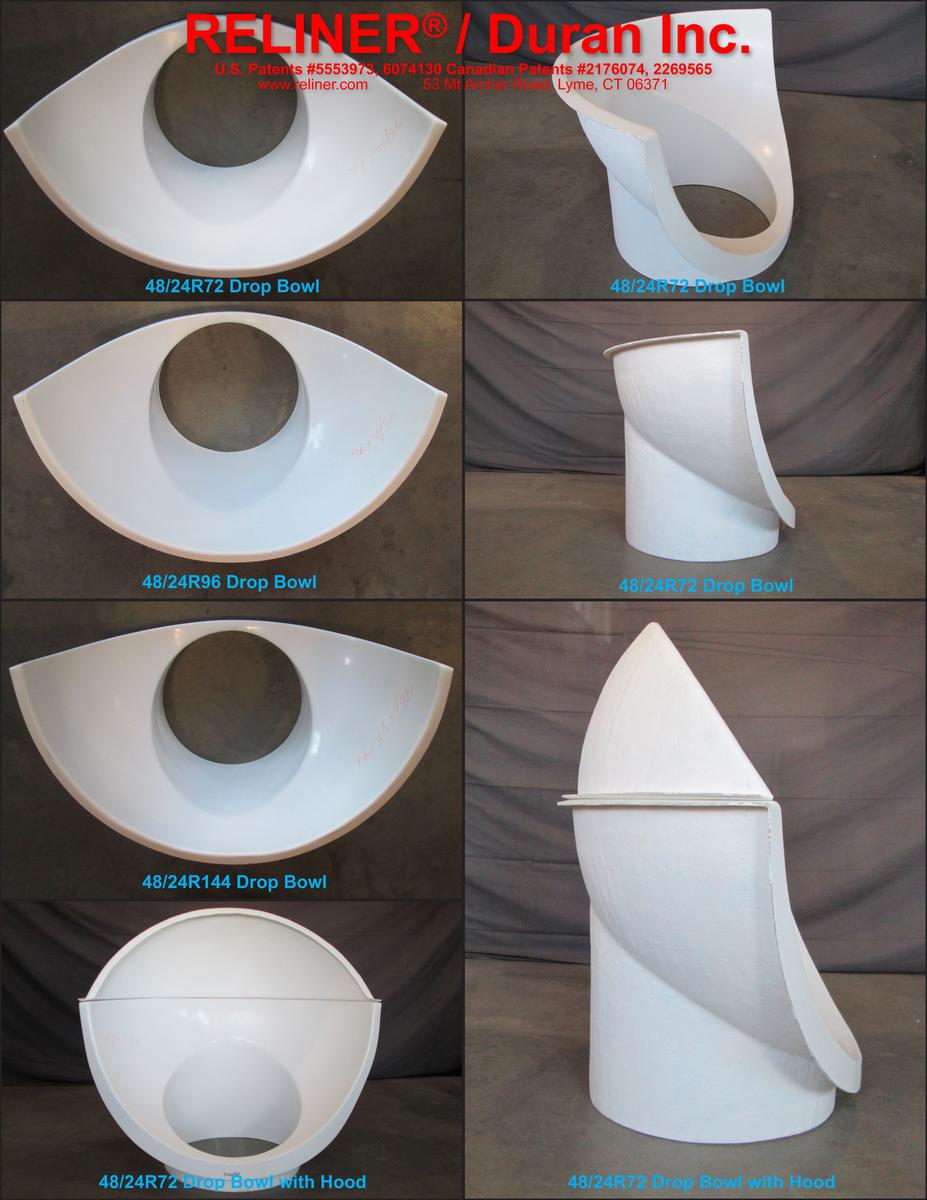

48/24RDB72

48" Drop Bowl - 24" outlet for 6' diameter manhole - requires (10) 3/8" x 3" anchor bolts

 6.00-6.00 ft.
24 in.
48 in.
$1766.12
48/24R96

48" Drop Bowl - 24" outlet for 7'-8" diameter manhole - requires (10) 3/8" x 3" anchor bolts

 7.00-8.00 ft.
24 in.
48 in.
$1789.98
48/24R144

48" Drop Bowl - 24" outlet for 9' - 12' diameter manhole - requires (10) 3/8" x 3" anchor bolts

 9.00-12.00 ft.
24 in.
48 in.
$1789.98
48/24FDB

 48"  Drop Bowl flat-back - 24" outlet - requires (10) 3/8" x 3" anchor bolts
24 in.
48 in.
27.00 lb.
$1789.98
Description

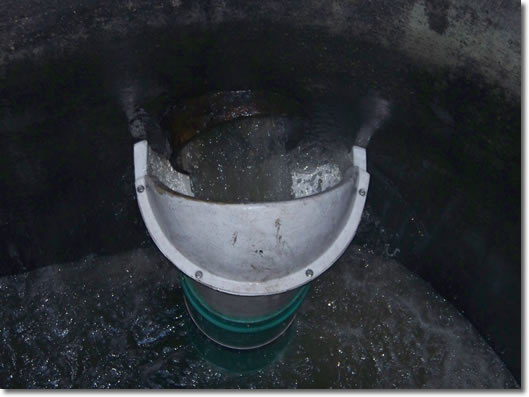

Force Line Hood for Inside Drop Bowls   - includes installation kit

Part Number Description Weight Price
AHood

Force Line Hood for A4 & A6 series Drop Bowls
1.00 lb.
$136.68
BHood

Force Line Hood for B8 & B10 series Drop Bowls
2.00 lb.
$191.35
24Hood

Force Line Hood for 24/12 & 24/15 Series Drop Bowls
3.00 lb.
$287.03
30Hood

Force Line Hood for 30/18 series Drop Bowls
5.00 lb.
$314.36
36Hood

Force Line Hood for 36/21 series Drop Bowls
6.00 lb.
$398.91
48Hood

Force Line Hood for 48/24 series Drop Bowls
7.50 lb.
$1103.73
Description

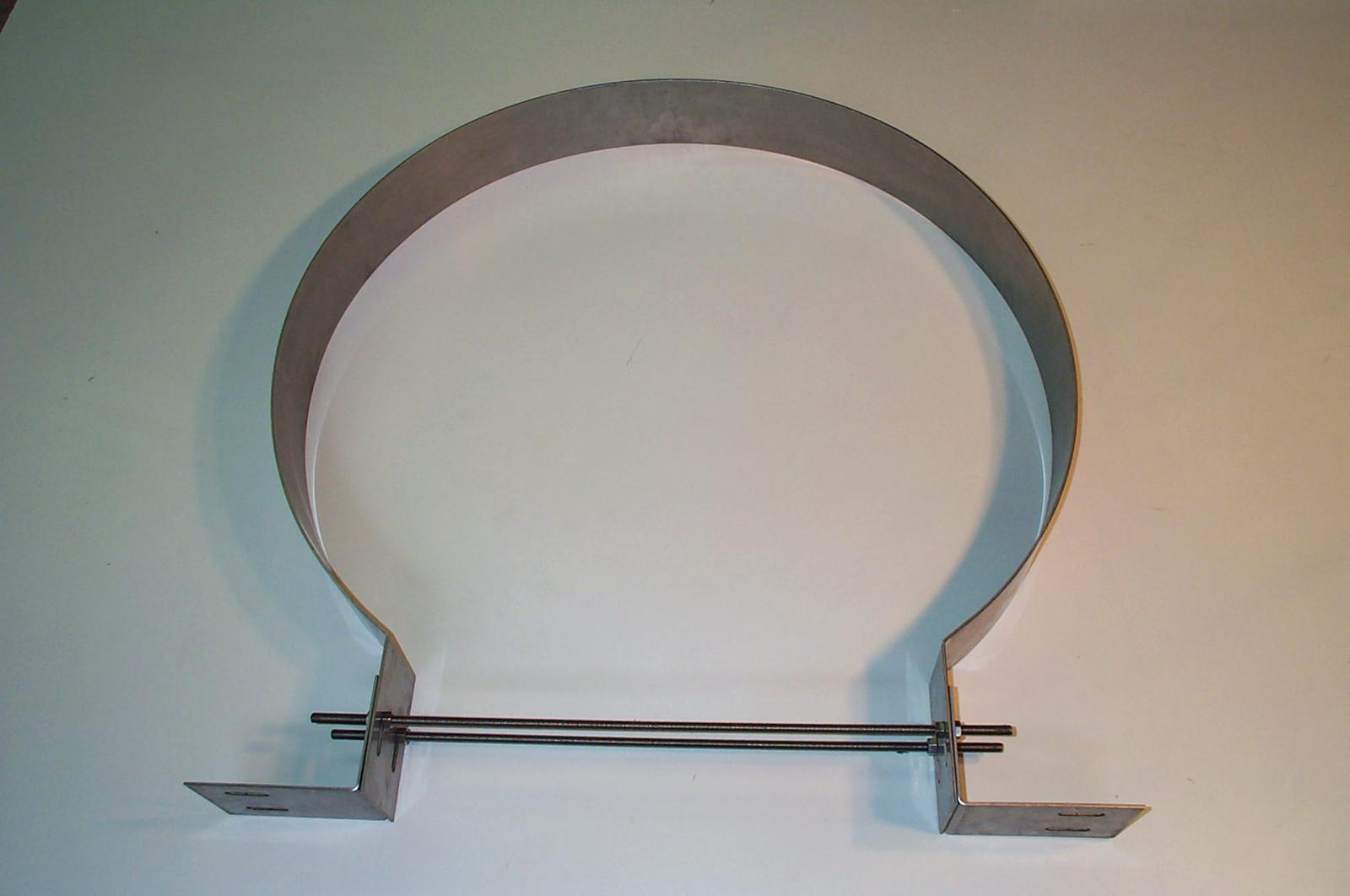

Stainless Steel Adjustable Pipe Support Brackets - Type 304 Stainless

PDFCAD
Part Number Description Width Approximate Range Weight Price

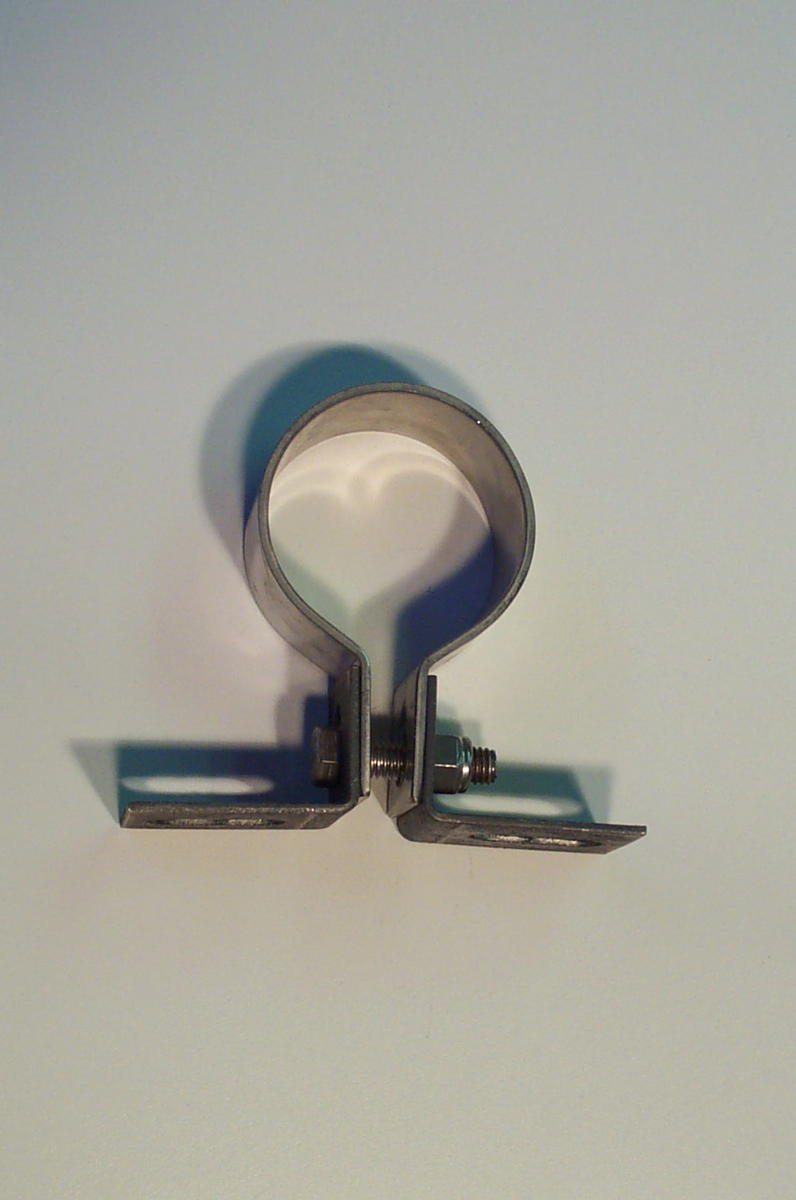

1.5SS40

304 SS 1.5 I.D. Pipe Bracket. Fits Sch40, 80, 160, 200, DN40

1.50 in.
 1.82-2.00 in.
1.00 lb.
$66.75

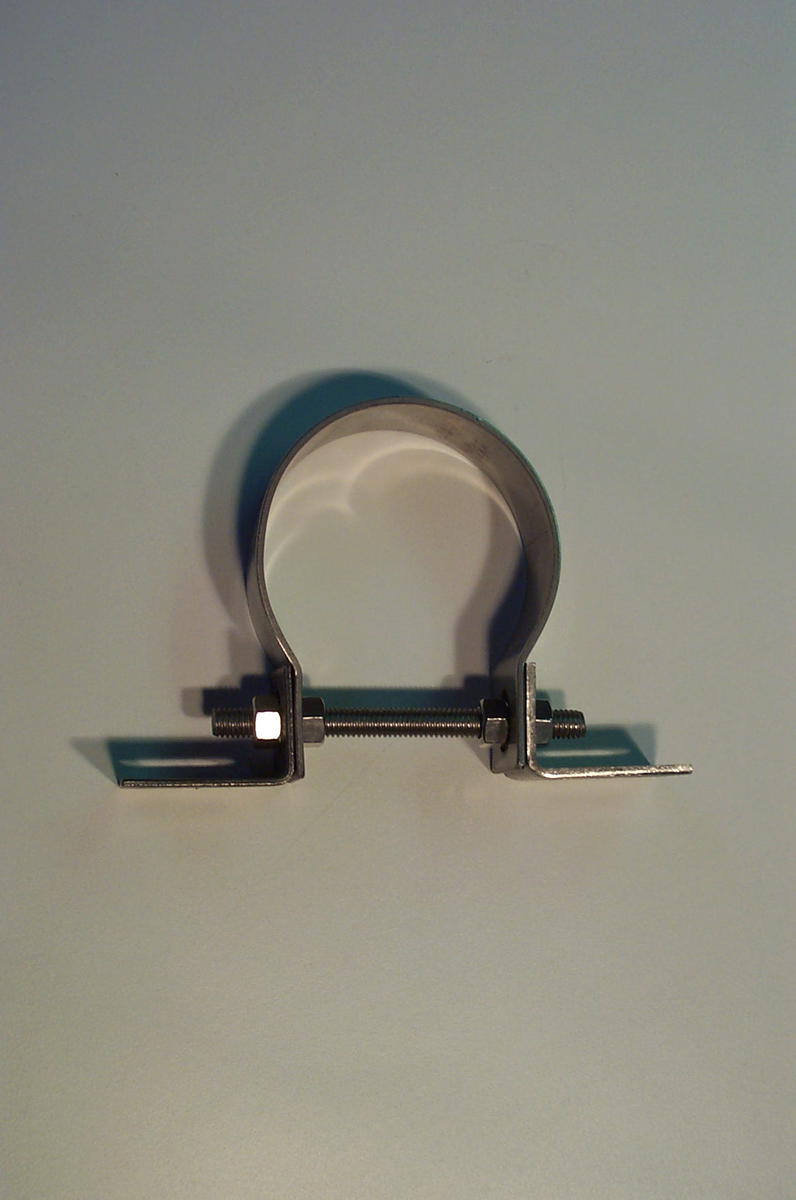

2SS40

304 SS 2'' I.D. Pipe Bracket. Fits Sch40, 80, 160, 200 DN50

1.50 in.
 2.25-2.60 in.
1.00 lb.
$70.06
2.5SS40

304 SS 2.5 I.D. Pipe Bracket. Fits Sch40, 80, 160
1.50 in.
 2.75-3.00 in.
1.00 lb.
$70.06

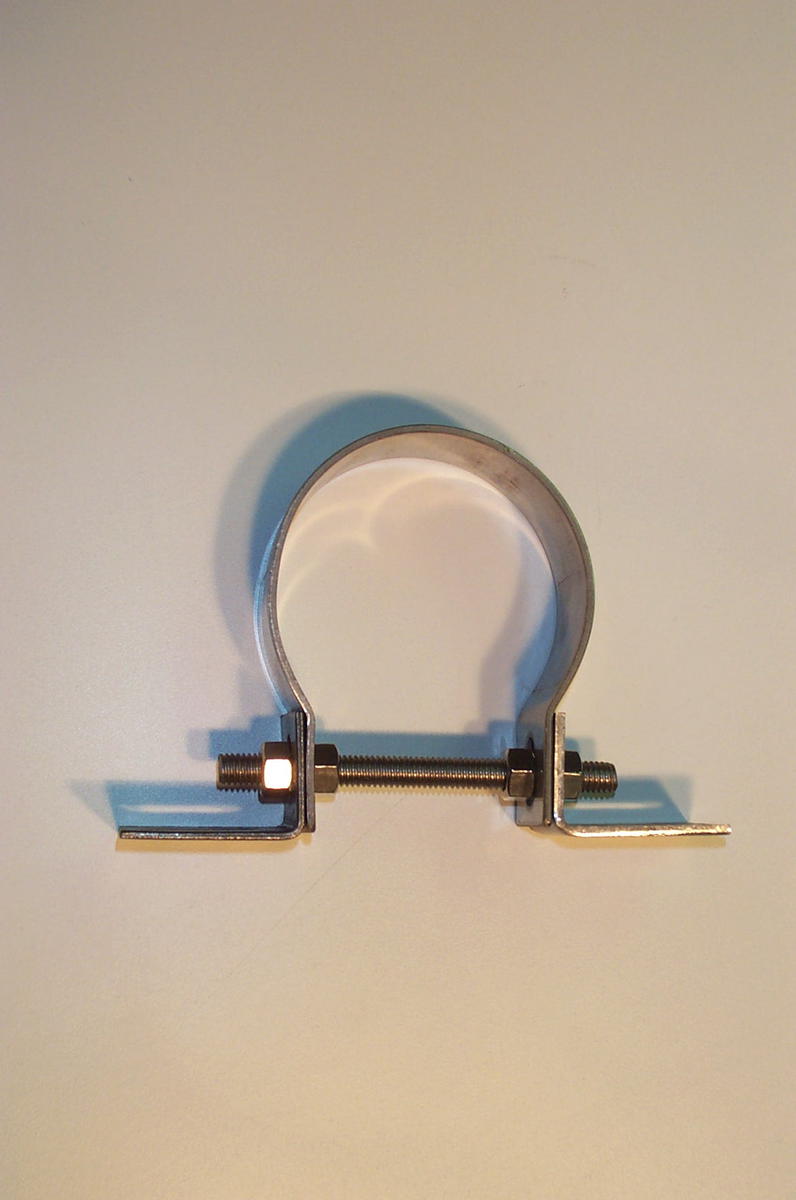

3SS40

304 SS 3.5 I.D. Pipe Bracket. Fits Sch40, 80, 160, 200, DN80

1.50 in.
 3.34-3.70 in.
1.00 lb.
$70.79
3.5SS40

304 SS Pipe Bracket for a 3.5'' Pipe. Sch40 - Fits 3'' C900
1.50 in.
 3.80-4.35 in.
1.00 lb.
$76.22
4SS35

304 SS Pipe Bracket for 4'' Pipe. Fits SDR 35 - Fits also 3.5 sCH 40 3''C900
1.50 in.
 4.00-4.35 in.
1.00 lb.
$76.22

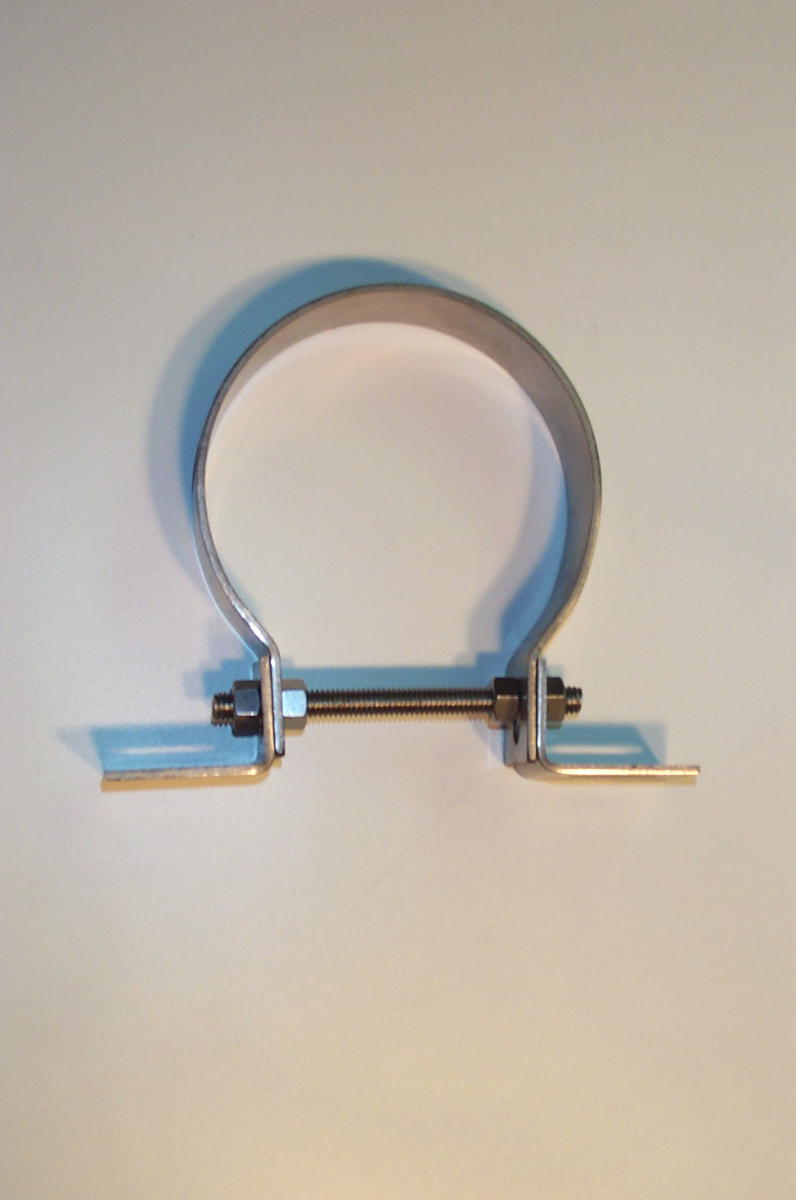

4SS40-900

304 SS Pipe Bracket for a 4'' Pipe. Fits Sch40, C900, CIODq 4'' Ductile Iron, Dn100

1.50 in.
 4.35-4.85 in.
1.00 lb.
$76.22
4HDPE

304 Pipe Bracket for a 4'' Pipe, Fits HDPE

1.50 in.
 4.35-4.85 in.
1.00 lb.
$76.22

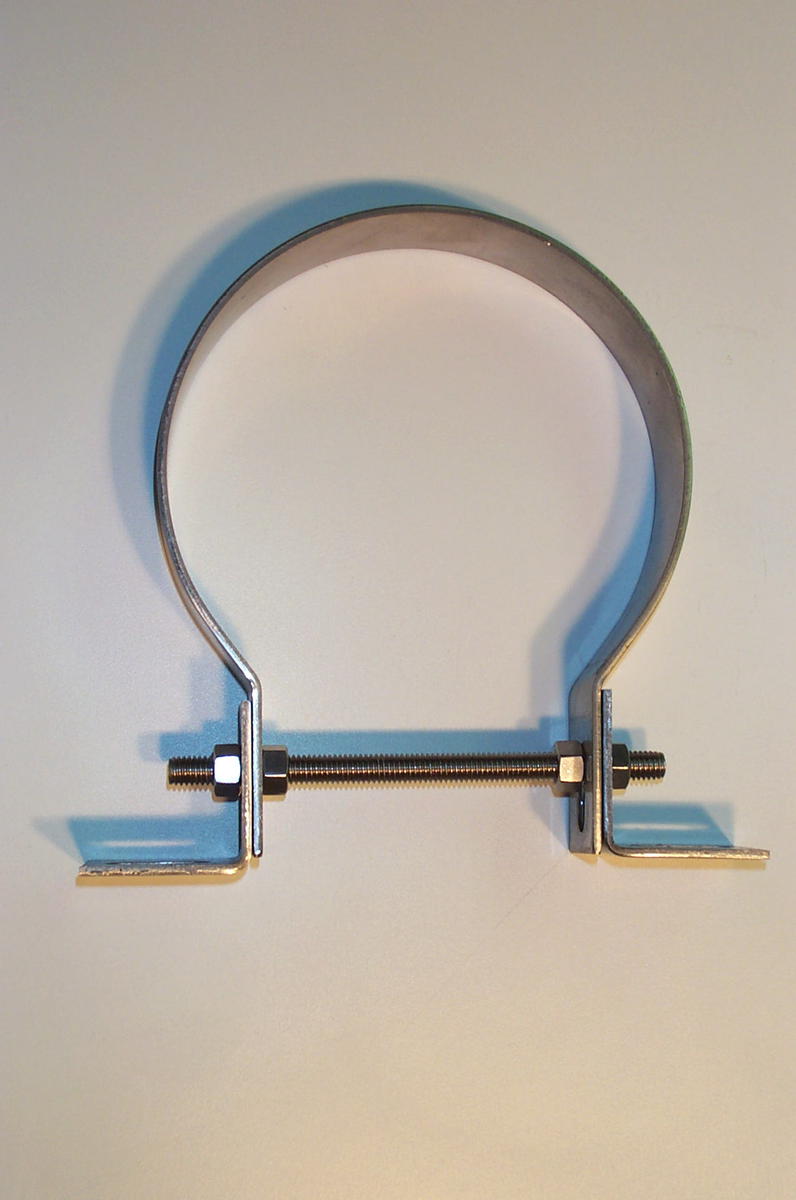

6SS35

304 SS Pipe Bracket for a 6'' PIpe. Fits SDR 35

1.50 in.
 6.10-6.45 in.
1.50 lb.
$80.36

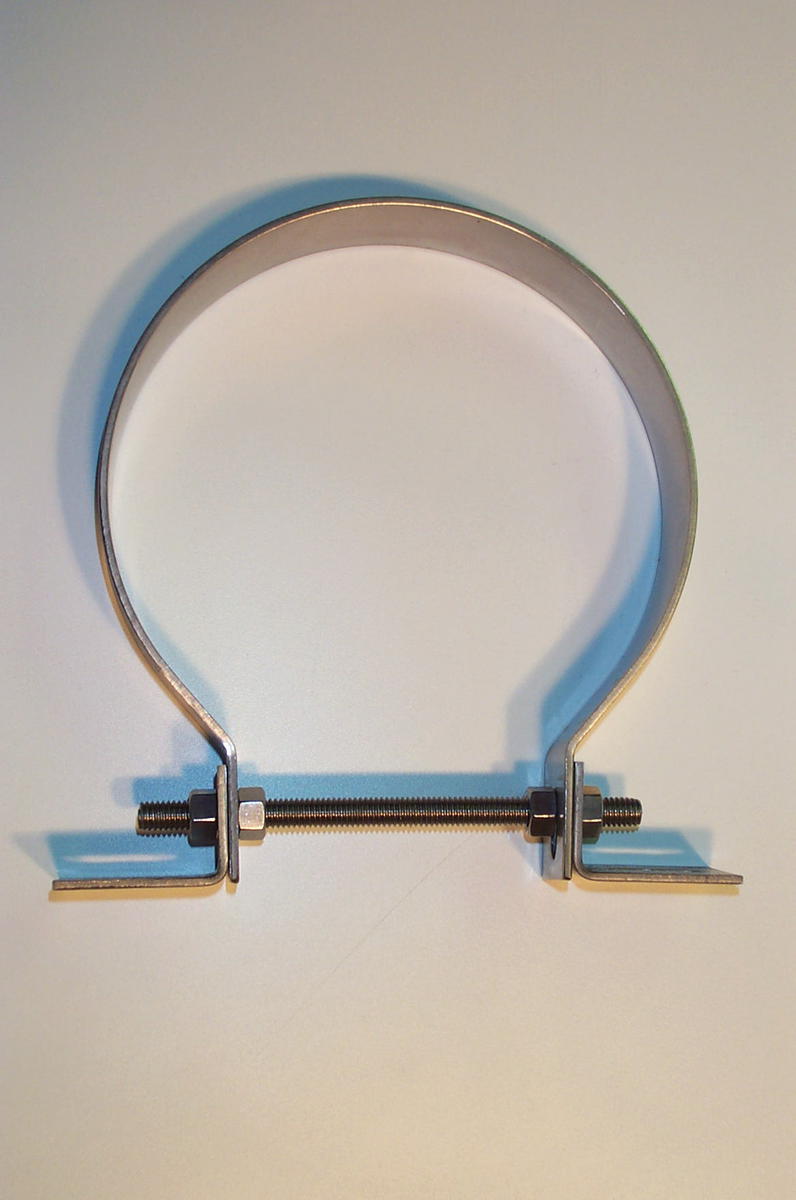

6SS40-900

304 SS PIpe Bracket For a 6'' Pipe. Fits Sch40, C900, Ciod, DN150

1.50 in.
 6.46-6.95 in.
1.50 lb.
$80.36
6HDPE

304 SS Pipe Bracket for a 6'' Pipe. Fits HDPE

1.50 in.
 6.46-6.95 in.
1.50 lb.
$80.36
6Truss

304 SS Pipe Bracket for a 6'' TRUSS Pipe

1.50 in.
 6.10-6.45 in.
1.50 lb.
$80.36

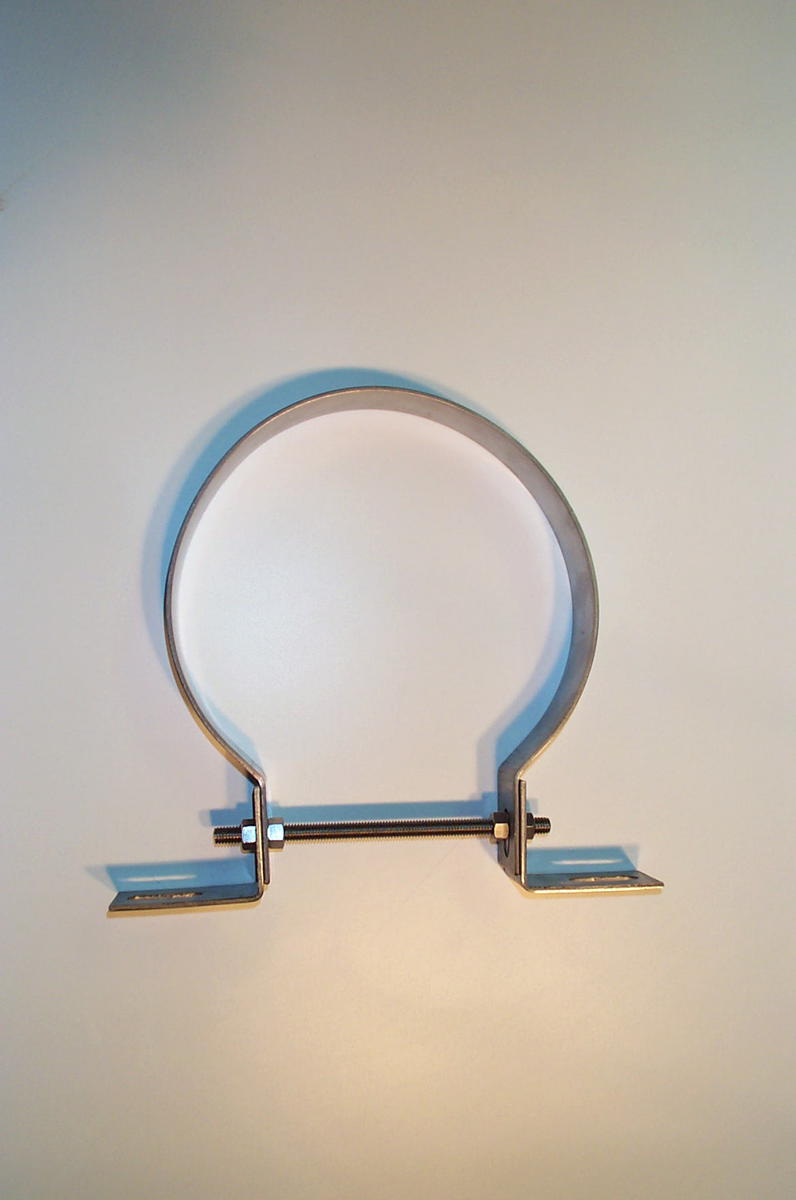

8SS35

304 SS Pipe Bracket for 8'' Pipe. Fits SDR 35

1.50 in.
 8.24-8.56 in.
2.00 lb.
$101.95
8SS40-900

304 SS Pipe Bracket For 8'' Pipe. Fits Schedual 40, C900, CIOD, DN200
1.50 in.
 8.56-9.10 in.
2.00 lb.
$101.31
8HDPE

304 SS 8" Pipe Bracket fr 8" Pipe.  Fits HDPE
1.50 in.
 8.56-9.10 in.
2.00 lb.
$101.31
8Truss

304 SS Pipe Bracket for a 8'' TRUSS Pipe
1.50 in.
 9.20-9.50 in.
2.00 lb.
$102.51

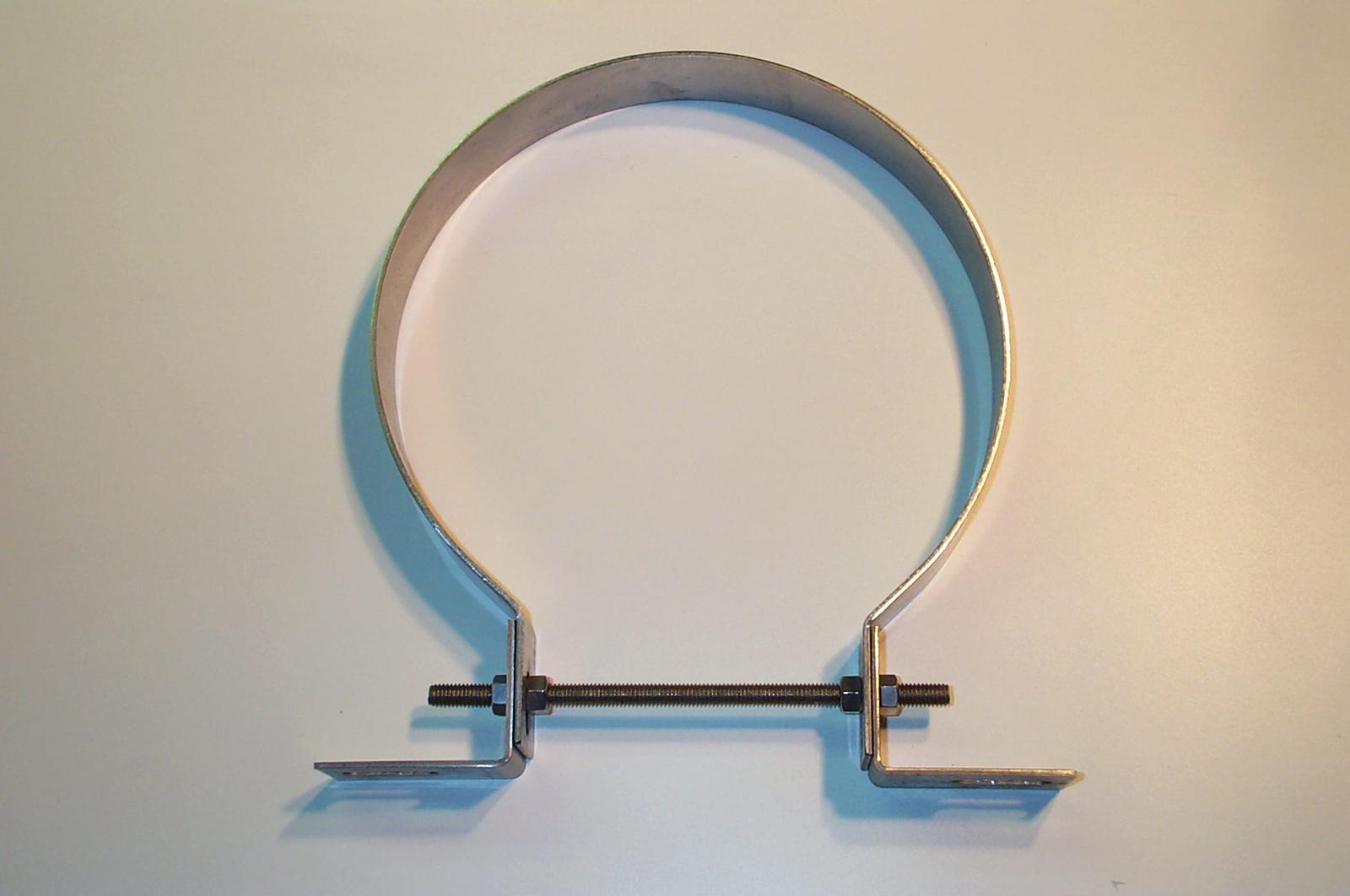

10SS35

304 SS Pipe Bracket for 10" Pipe.  Fits SDR 35

1.50 in.
 10.25-10.60 in.
2.00 lb.
$120.46

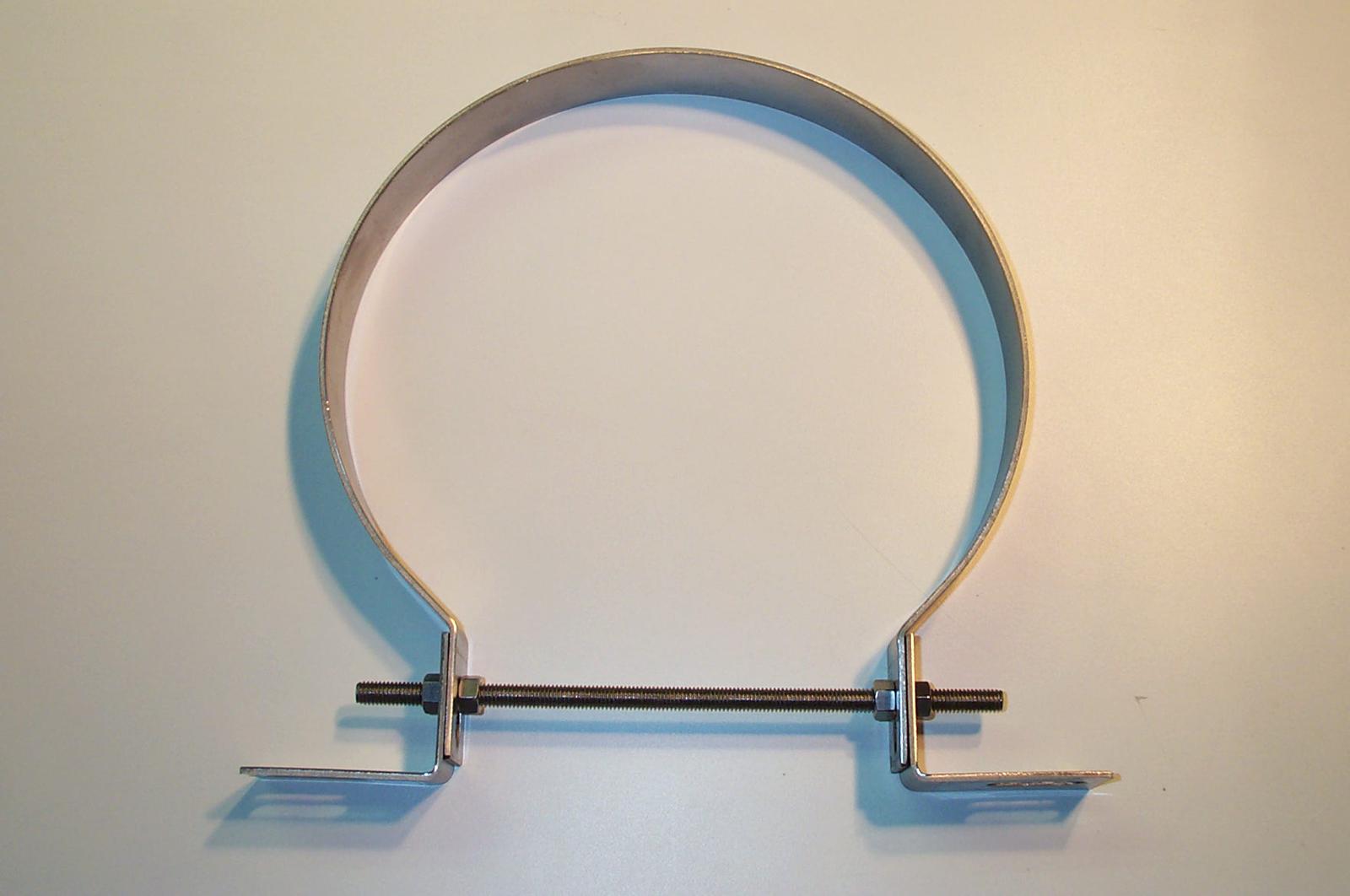

10SS40-900

304 SS Pipe Bracket for 10" Pipe.  Fits Sch40, C900, CIOD, DN250

1.50 in.
 10.65-11.15 in.
2.00 lb.
$123.57
10HDPE

304 SS 10" Pipe Bracket for 10" Pipe.  Fits HDPE
2.00 in.
 11.40-11.91 in.
2.00 lb.
$135.07
10Truss

304 SS Pipe Bracket for 10" Pipe.  Fits 10" Truss Pipe
2.00 in.
 11.40-11.91 in.
2.00 lb.
$135.07

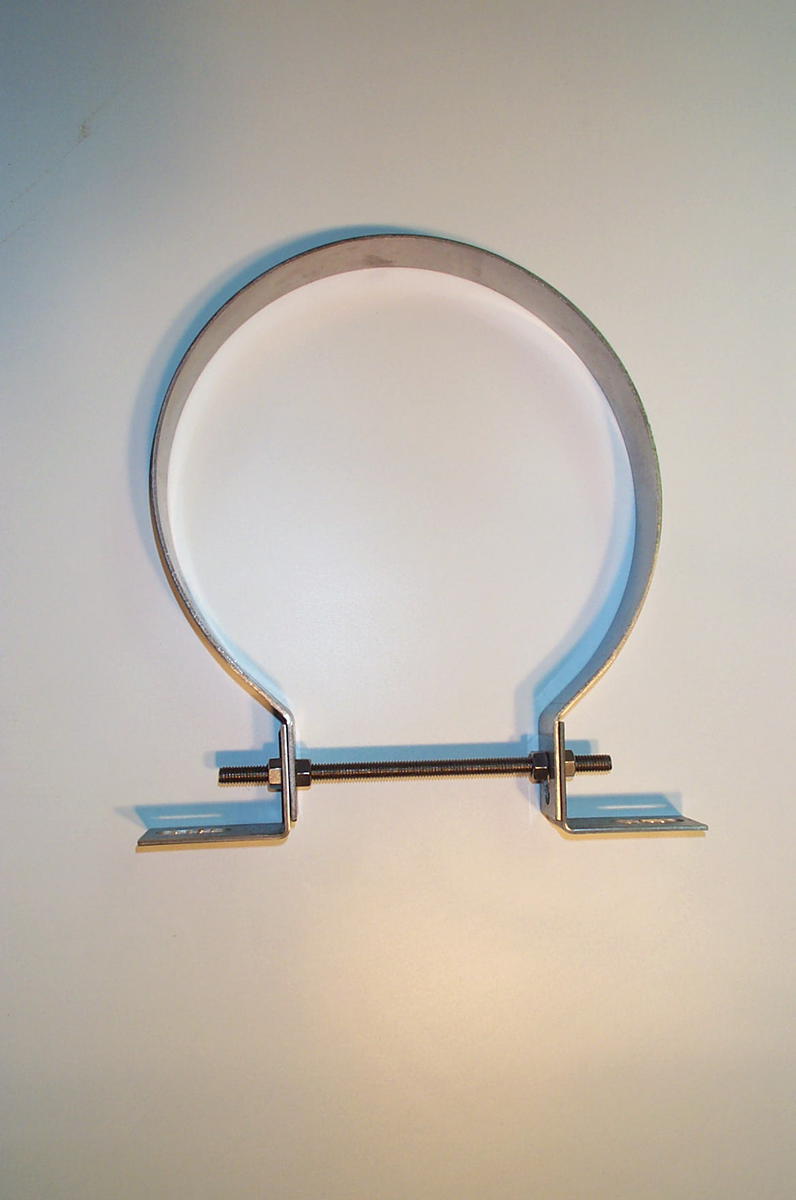

12SS35

304 SS Pipe Bracket for 12" Pipe.  Fits SDR 35 and 10" Truss Pipe

2.00 in.
 12.34-12.66 in.
3.00 lb.
$135.07
12SS40

304 SS Pipe Bracket for 12" Pipe.  Fits Sch40 13.2 OD, DN300
2.00 in.
 12.60-13.00 in.
3.50 lb.
$144.07
12SS900

304 SS Pipe Bracket for 12" Pipe.  Fits C900 13.2 OD
2.00 in.
 13.00-13.25 in.
3.40 lb.
$144.07
12HDPE

304 SS Pipe Bracket for 12" HDPE Pipe 14.3OD
2.00 in.
 14.25-14.75 in.
4.00 lb.
$173.25

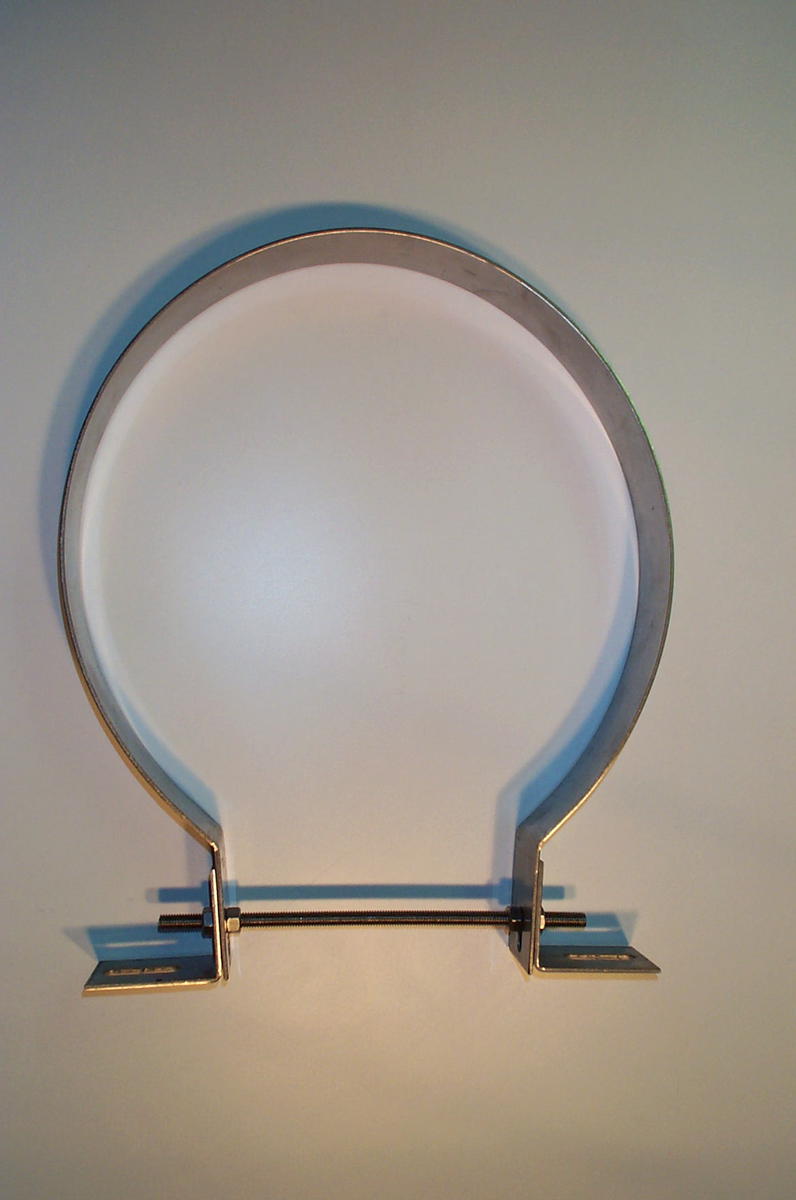

12Truss

304 SS Pipe Bracket for 12" Truss Pipe

2.00 in.
 13.90-14.25 in.
4.00 lb.
$187.15
14SS40

304 SS Pipe Bracket for 14" Sch40 Pipe, DN350

2.00 in.
 13.90-14.25 in.
4.00 lb.
$187.15
14SS900

304 SS 14" Bracket Fits C900

2.00 in.
 15.14-15.50 in.
4.00 lb.
$187.15

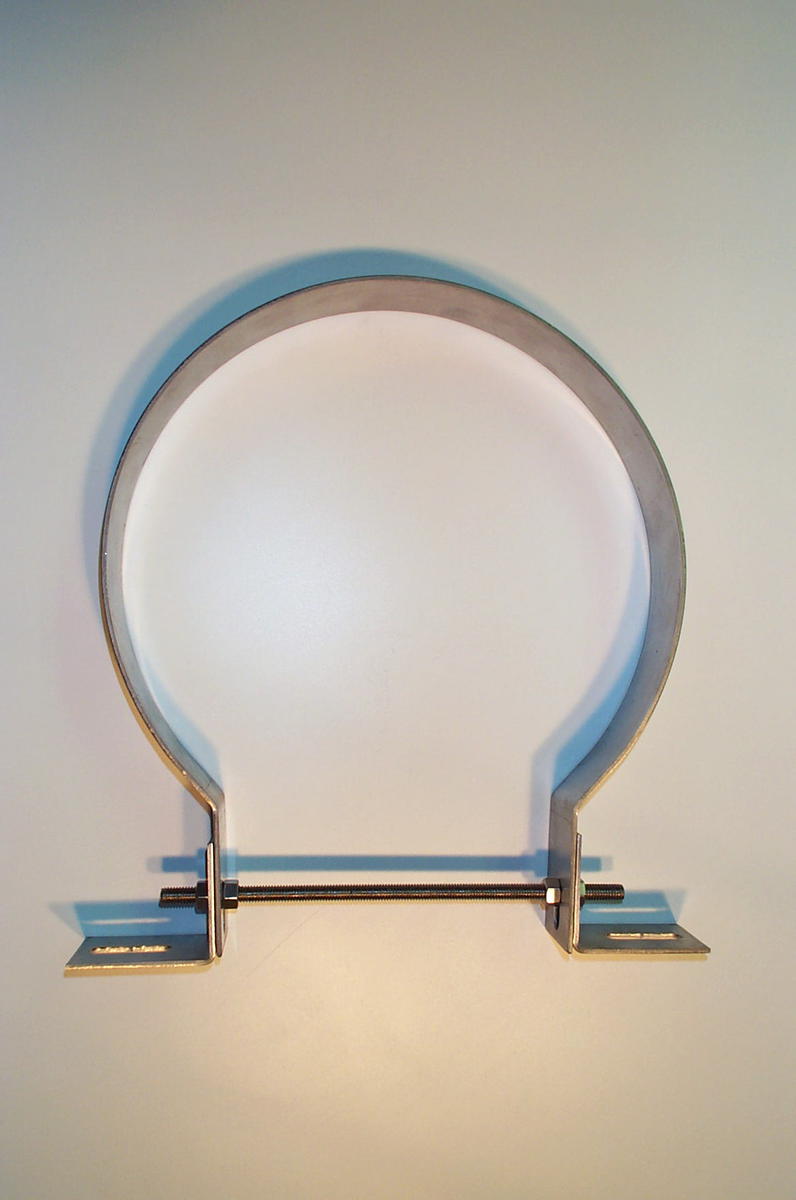

15SS35

304 SS Pipe Bracket for 15" Pipe.  Fits SDR35 & 14 CIOD

2.00 in.
 15.14-15.50 in.
4.00 lb.
$187.15
15HDPE

304 SS 15" HDPE Pipe adjustable Bracket Fits 17.84" - 18.25" od

3.00 in.
 17.84-18.25 in.
7.00 lb.
$227.68

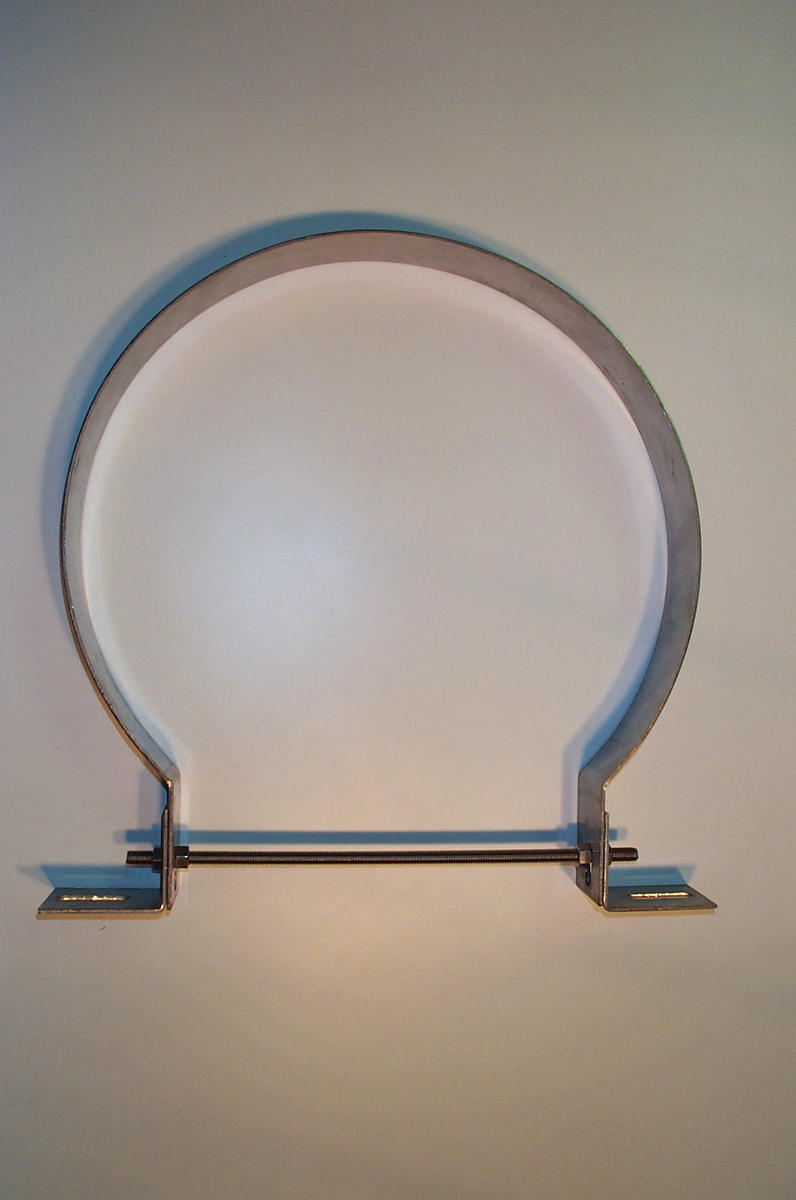

16SS40

304 SS Pipe Bracket for 16" Pipe.  Fits Sch 40, DN400

2.00 in.
 15.50-16.25 in.
4.00 lb.
$200.67
16SS900

304 SS Pipe Bracket for for 16" C900, CIOD, ductile iron pipe
3.00 in.
 17.24-17.60 in.
7.00 lb.
$230.61

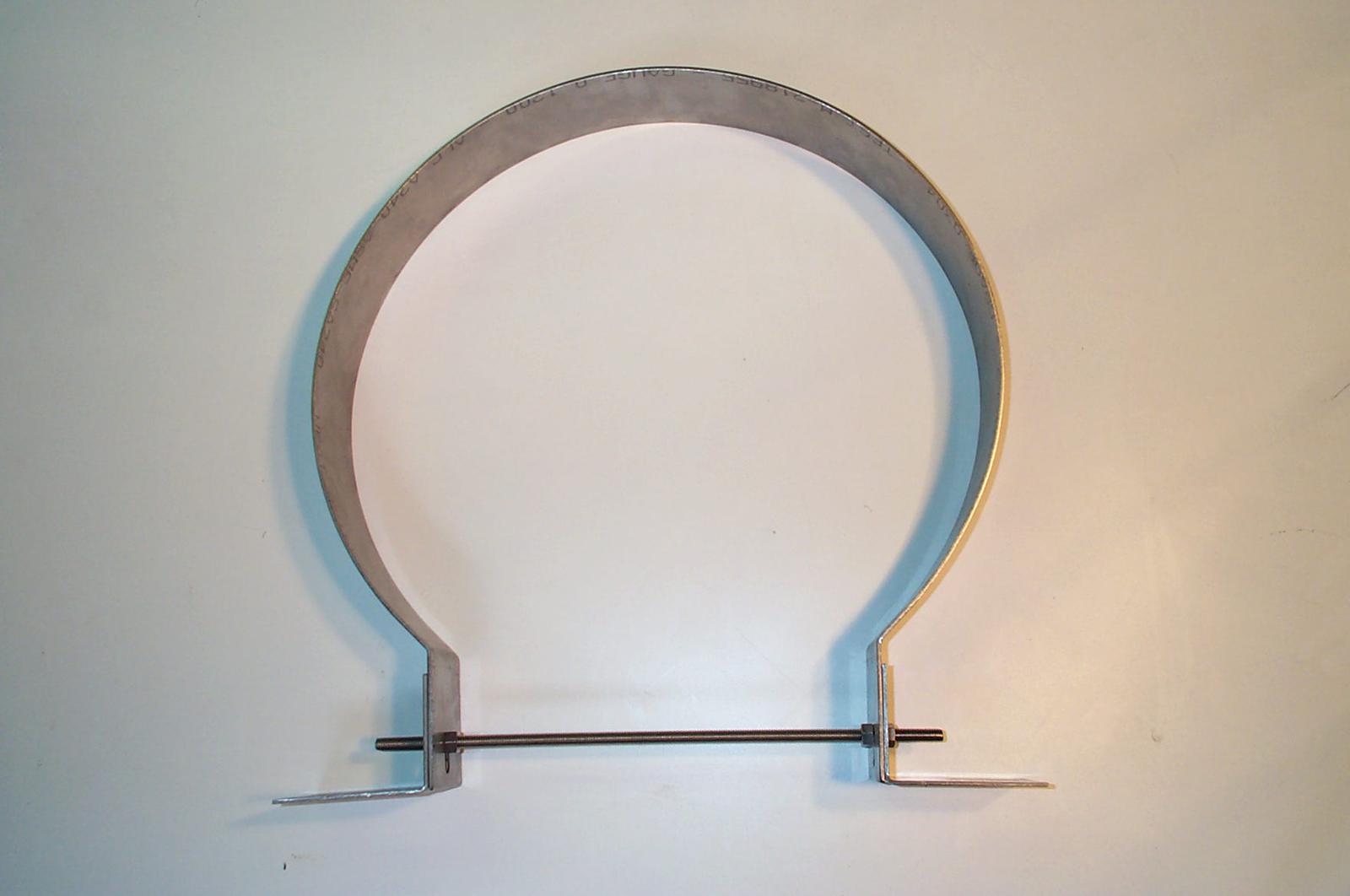

18SS35

304 SS Pipe Bracket for 18" Pipe.  Fits SDR35

3.00 in.
 18.55-18.90 in.
7.00 lb.
$230.61

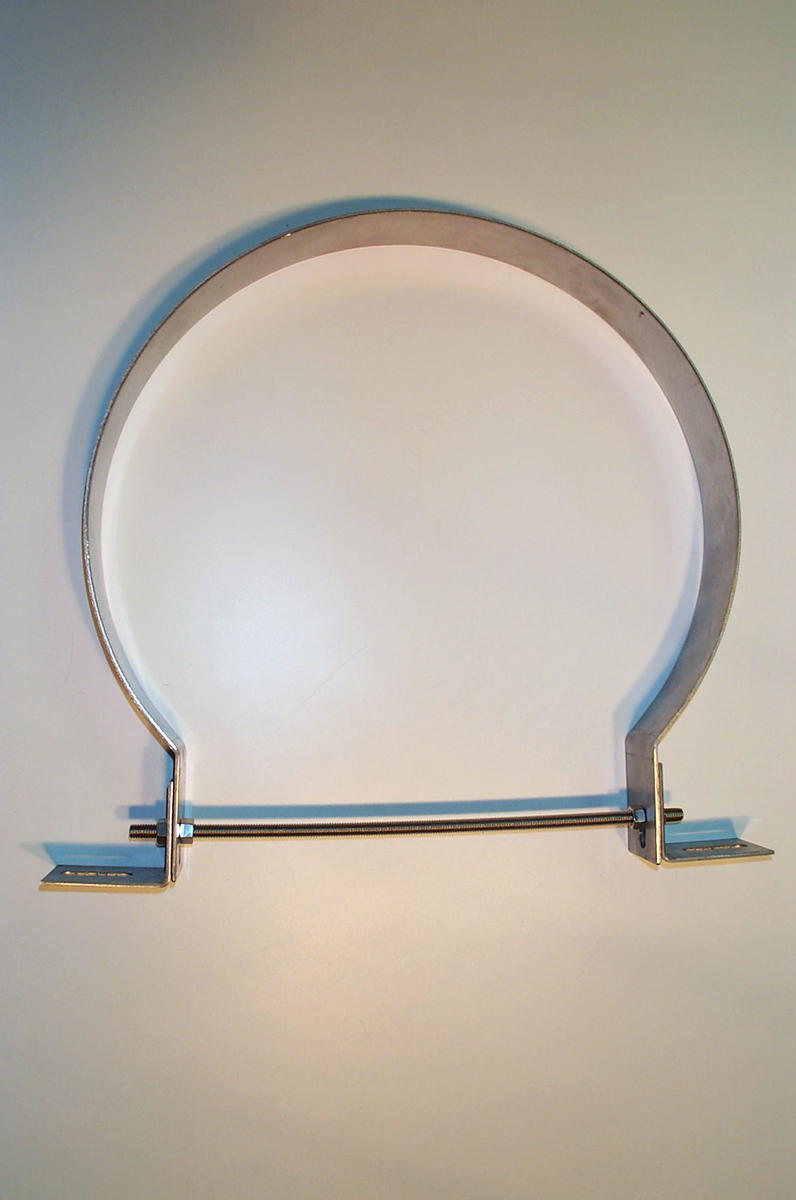

18SS40

304 SS Pipe Bracket for 18" Pipe.  Sch40, DN450

3.00 in.
 17.84-18.25 in.
7.00 lb.
$230.61
18SS900

304 SS Pipe Bracket for 18" Pipe. Fits C900, CIOD
3.00 in.
 19.35-19.70 in.
7.00 lb.
$230.61
18FG

304 SS Pipe Bracket for 17.696" OD Pipe (Fiberglass)
3.00 in.
 17.24-17.75 in.
7.00 lb.
$230.61
18HDPE

304 SS 18" Pipe Bracket for 18" Pipe.  Fits HDPE

3.00 in.
 21.85-22.30 in.
8.00 lb.
$252.81

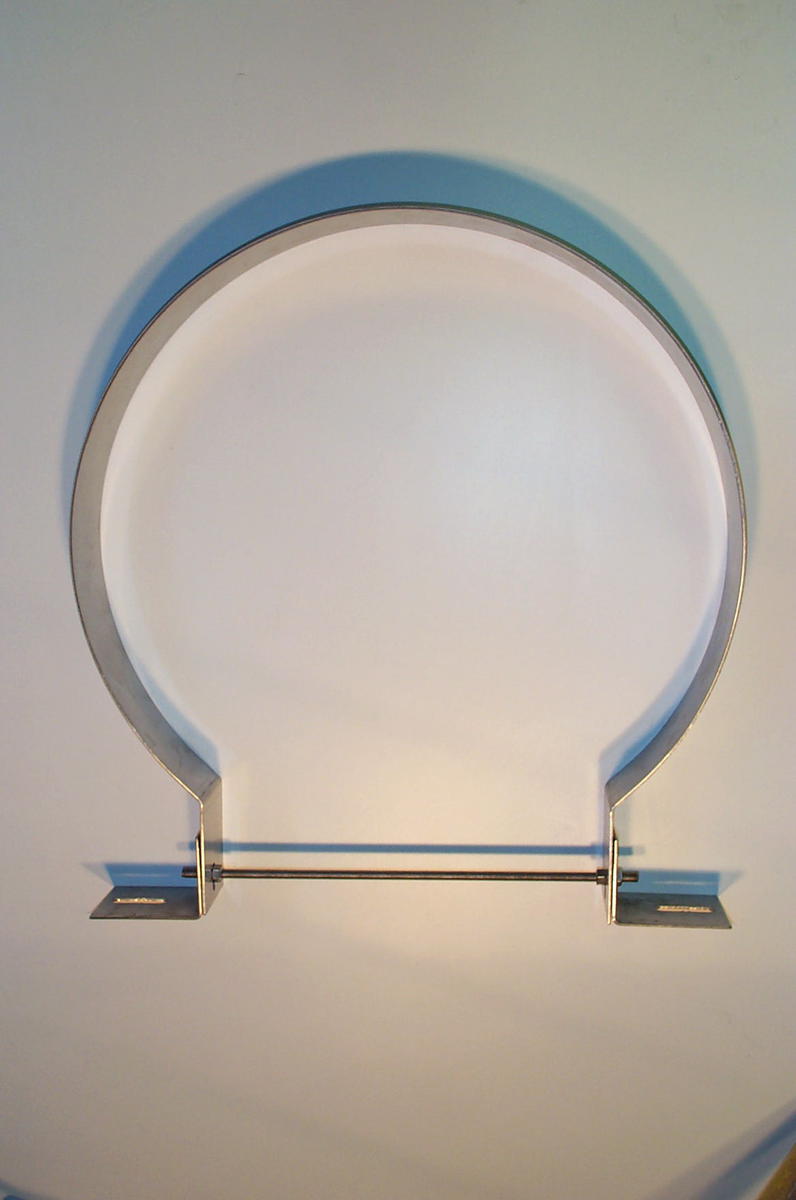

20SS40

304 SS Pipe Bracket for 20" Sch40 pipe, DN500

3.00 in.
 19.80-21.70 in.
8.00 lb.
$252.81
20Ductile

304 SS Pipe Bracket for 20" ductile iron pipe

3.00 in.
 19.80-21.70 in.
8.00 lb.
$252.81

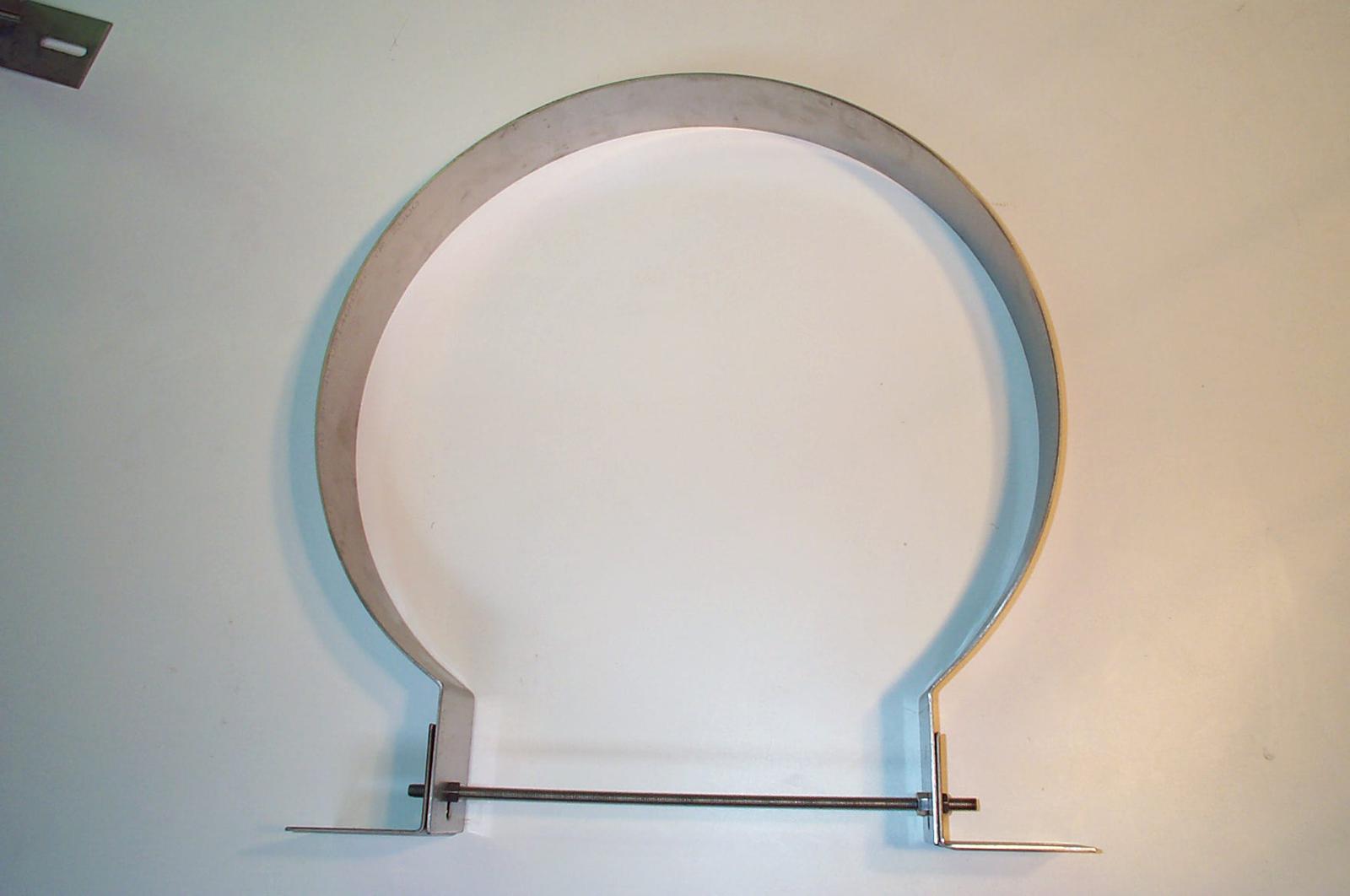

21SS35

304 SS Pipe Bracket for 21" Pipe 3" wide.  Fits SDR 35

3.00 in.
 21.85-22.30 in.
8.00 lb.
$252.81

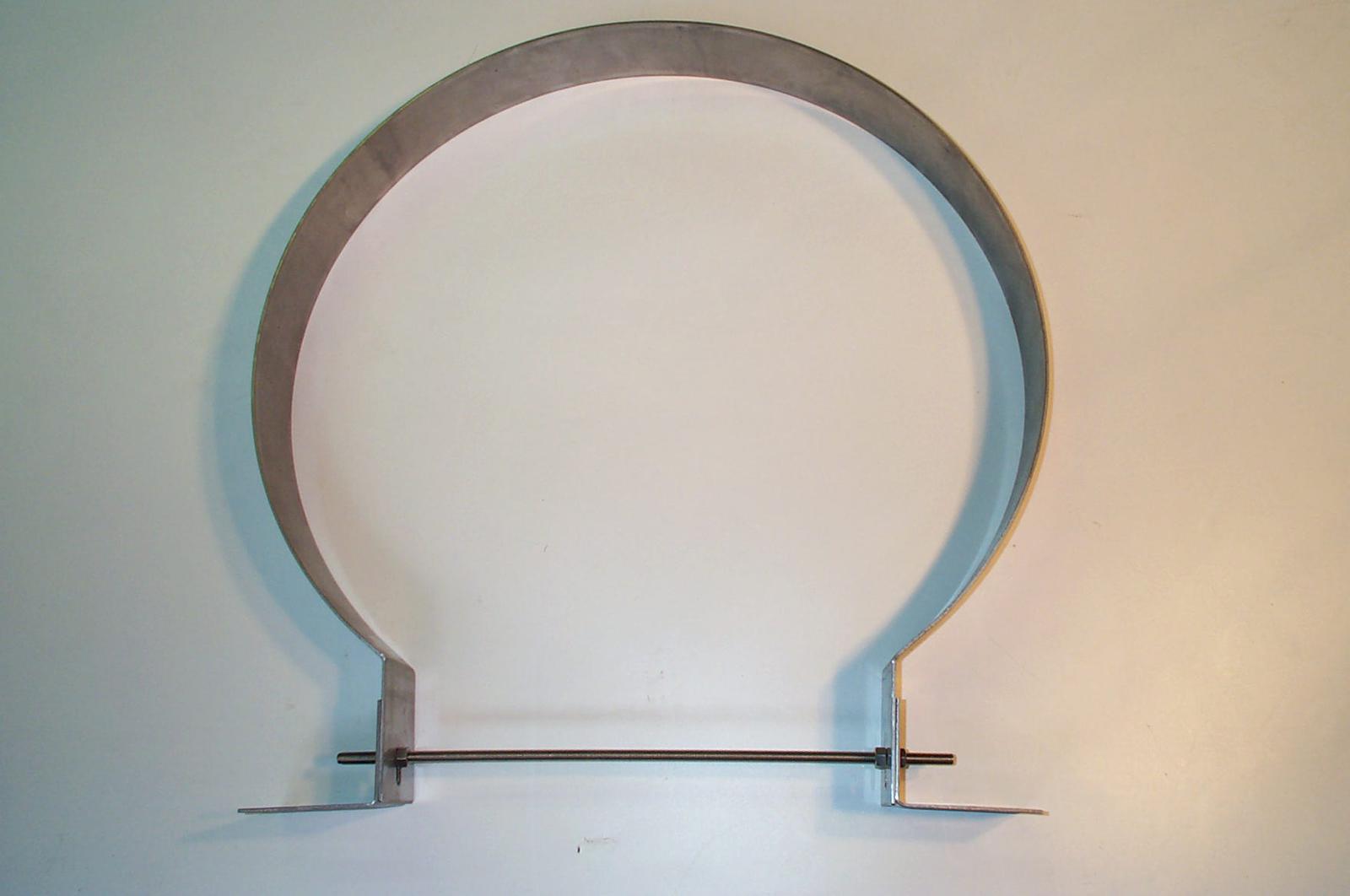

24SS35

304 SS Pipe Bracket - 3" width single slot style. Fits SDR 35

3.00 in.
 24.50-25.00 in.
9.00 lb.
$275.22
24SS40

304 SS 24" Bracket - 3" width single slot sytle. Fits Sch 40, DN600
3.00 in.
 23.50-24.50 in.
9.00 lb.
$275.22
24CIOD

304 SS 24" Bracket - 3" width single slot style. Fits CIOD
3.00 in.
 25.00-26.50 in.
9.00 lb.
$329.87
24HDPE

304 SS 24" Pipe Bracket for 24" Pipe  4" width double slot sytle.  Fits HDPE
4.00 in.
 27.75-28.50 in.
9.00 lb.
$407.83
27SS35

304 SS 27" Pipe Bracket 4" width double slot style.  Fits SDR 35 & 24" HDPE
4.00 in.
 27.75-28.50 in.
13.00 lb.
$407.83
30SS35

304 SS 30" Pipe Bracket - 4" width double slot style.  Fits SDR 35

4.00 in.
 31.78-32.30 in.
16.00 lb.
$420.41
30SS40

304 SS 30" Pipe Bracket for 30" Pipe.  Fits SCH 40
4.00 in.
 29.75-30.30 in.
16.00 lb.
$420.41
30HDPE

304 SS 30" Pipe Bracket for 30" Pipe.  Fits HDPE
4.00 in.
 35.00-37.00 in.
16.00 lb.
$474.18
36SS40

304 SS 36.5" Pipe Bracket for 36" Pipe.  Fits Fiberglass and SCH40
4.00 in.
 35.00-37.00 in.
18.00 lb.
$474.18
36FG

304 SS Pipe Bracket for Fiberglass
4.00 in.
 35.00-37.00 in.
18.00 lb.
$474.18
Description

Stainless Steel Adjustable Pipe Support Brackets - Type 316 Stainless

PDFCAD
Part Number Description Width Approximate Range Weight Price
316/3.5SS40

316 SS Pipe Bracket for a 3.5'' Pipe. Sch40 - Fits 3'' C900
1.50 in.
 3.80-4.35 in.
1.00 lb.
$90.75
316/4SS35

316 SS Pipe Bracket for 4'' pipe. Fits SDR 35 - Fits also 3.5 Sch 40 and 3'' C900
1.50 in.
 4.00-4.35 in.
1.00 lb.
$90.75
316/4SS40

316 SS Pipe Bracket for a 4'' Pipe. Fits Sch40, C900, CIODq 4'' Ductile Iron, Dn100
1.50 in.
 4.35-4.85 in.
1.50 lb.
$93.20
316/4HDPE

316 SS 4" Pipe Bracket for 4" Pipe.  Fits HDPE
1.50 in.
 4.35-4.85 in.
1.00 lb.
$93.20
316/6SS35

316 SS Pipe Bracket for 6'' Pipe. Fits SDR 35
1.50 in.
 6.10-6.45 in.
1.50 lb.
$97.51
316/6SS40

316 SS PIpe Bracket For a 6'' Pipe. Fits Sch40, C900, Ciod, DN150
1.50 in.
 6.46-6.95 in.
1.50 lb.
$94.91
316/6HDPE

316 SS 6" Pipe Bracket for 6" Pipe.  Fits HDPE
1.50 in.
 6.46-6.95 in.
1.50 lb.
$94.91
316/6Truss

316 SS 6" Pipe Bracket for 6" Pipe.  Fits Truss
1.50 in.
 6.10-6.45 in.
1.50 lb.
$97.51
316/8SS35

316 SS Pipe Bracke for 8" Pipe.  Fits SDR 35
1.50 in.
 8.24-8.56 in.
2.00 lb.
$112.90
316/8SS40

316 SS Pipe Bracket For 8'' Pipe. Fits Sch40, C900, CIOD, DN200
1.50 in.
 8.56-9.10 in.
2.00 lb.
$112.13
316/8HDPE

316 SS 8" Pipe Bracket for 8" Pipe.  Fits HDPE
1.50 in.
 8.56-9.10 in.
2.00 lb.
$112.13
316/8Truss

316 SS 8" Pipe Bracket for 8" Pipe.  Fits Truss
1.50 in.
 9.20-9.50 in.
2.00 lb.
$112.13
316/10SS35

316 SS Pipe Bracke for 10" Pipe.  Fits SDR 35
1.50 in.
 10.25-10.60 in.
1.50 lb.
$136.67
316/10SS40

316 SS Pipe Bracket for 10" Pipe.  Fits Sch40, C900, CIOD, DN250
1.50 in.
 10.65-11.15 in.
2.00 lb.
$136.67
316/10HDPE

316 SS 10" Pipe Bracket for 10" Pipe.  Fits HDPE
2.00 in.
 11.40-11.91 in.
2.00 lb.
$144.06
316/10Truss

316 SS Pipe Bracket for 10" Pipe.  Fits 10" Truss Pipe
2.00 in.
 11.40-11.91 in.
2.00 lb.
$144.06
316/12SS35

316 SS Pipe Bracke for 12" Pipe.  Fits SDR 35
2.00 in.
 12.34-12.66 in.
3.00 lb.
$155.09
316/12SS40

316 SS Pipe Bracket for 12" Pipe.  Fits Sch40 13.2 OD, DN300
2.00 in.
 12.60-13.25 in.
3.50 lb.
$155.09
316/12HDPE

316 SS Pipe Bracket for 12" HDPE Pipe 14.3OD
2.00 in.
 14.25-14.75 in.
4.00 lb.
$224.11
316/12Truss

316 SS Pipe Bracket for 12" Truss Pipe
2.00 in.
 13.90-14.25 in.
4.00 lb.
$224.11
316/14SS40

316 SS Pipe Bracket for 14" Sch40 Pipe, DN350
2.00 in.
 13.90-14.25 in.
4.00 lb.
$224.11
316/14SS900

316 SS 14" Bracket Fits C900
2.00 in.
 15.14-15.50 in.
4.00 lb.
$224.11
316/15SS35

316 SS Pipe Bracket for 15" Pipe.  Fits SDR35 & 14 CIOD
2.00 in.
 15.14-15.50 in.
4.00 lb.
$224.11
316/15HDPE

316 SS 15" HDPE Pipe adjustable Bracket Fits 17.84" - 18.25" od
3.00 in.
 17.84-18.25 in.
7.00 lb.
$273.21
316/16SS40

316 SS Pipe Bracket for 16" Pipe.  Fits Sch 40, DN400
2.00 in.
 15.50-16.25 in.
4.00 lb.
$225.74
316/16SS900

316 SS Pipe Bracket for for 16" C900, CIOD, ductile iron pipe
3.00 in.
 17.24-17.60 in.
7.00 lb.
$273.21
316/18SS35

316 SS Pipe Bracket for 18" Pipe.  Fits SDR35
3.00 in.
 18.55-18.90 in.
7.00 lb.
$273.21
316/18SS40

316 SS Pipe Bracket for 18" Pipe.  Sch40, DN450
3.00 in.
 17.84-18.25 in.
7.00 lb.
$273.21
316/18SS900

316SS Pipe Bracket for 18" Pipe. Fits C900, CIOD
3.00 in.
 19.35-19.70 in.
7.00 lb.
$273.21
316/18FG

316 SS Pipe Bracket for 17.696" OD Pipe (Fiberglass)
3.00 in.
 17.24-17.75 in.
7.00 lb.
$273.21
316/20SS40

316 SS Pipe Bracket for 20" Sch40 pipe, DN500
3.00 in.
 19.80-21.70 in.
8.00 lb.
$347.12
316/20SSDuctile

316 SS Pipe Bracket for 20" ductile iron pipe
3.00 in.
 19.80-21.70 in.
8.00 lb.
$347.12
316/21SS35

316 SS Pipe Bracket for 21" Pipe 3" wide. Fits SDR 35
3.00 in.
 21.85-22.30 in.
8.00 lb.
$347.12
316/24SS35

316 SS 24" Bracket - 3" width single slot style.  Fits SDR 35.
3.00 in.
 24.50-25.00 in.
9.00 lb.
$352.27
316/24CIOD

304 SS 24" Bracket - 3" width single slot style.  Fits CIOD
3.00 in.
 25.00-26.50 in.
9.00 lb.
$352.27
316/24SS40

316 SS 24" Bracket - 3" width single slot style.  Fits SCH 40, DN600
3.00 in.
 23.50-24.50 in.
9.00 lb.
$352.27
316/24SS40

316 SS 24" Bracket - 3" width single slot sytle. Fits Sch 40, DN600
3.00 in.
 23.50-24.50 in.
9.00 lb.
$352.27
Description

Detail - ANCH 304 SS 3/8" x 1" tamp-in lead expansion anchor assembly

PDFCAD
Part Number Description Length Weight Price
WedgeAnchor

3" x 3/8" Anchor Assembly for large Drop Bowls

photoPDFCAD
3 in.
0.13 lb.
$6.85

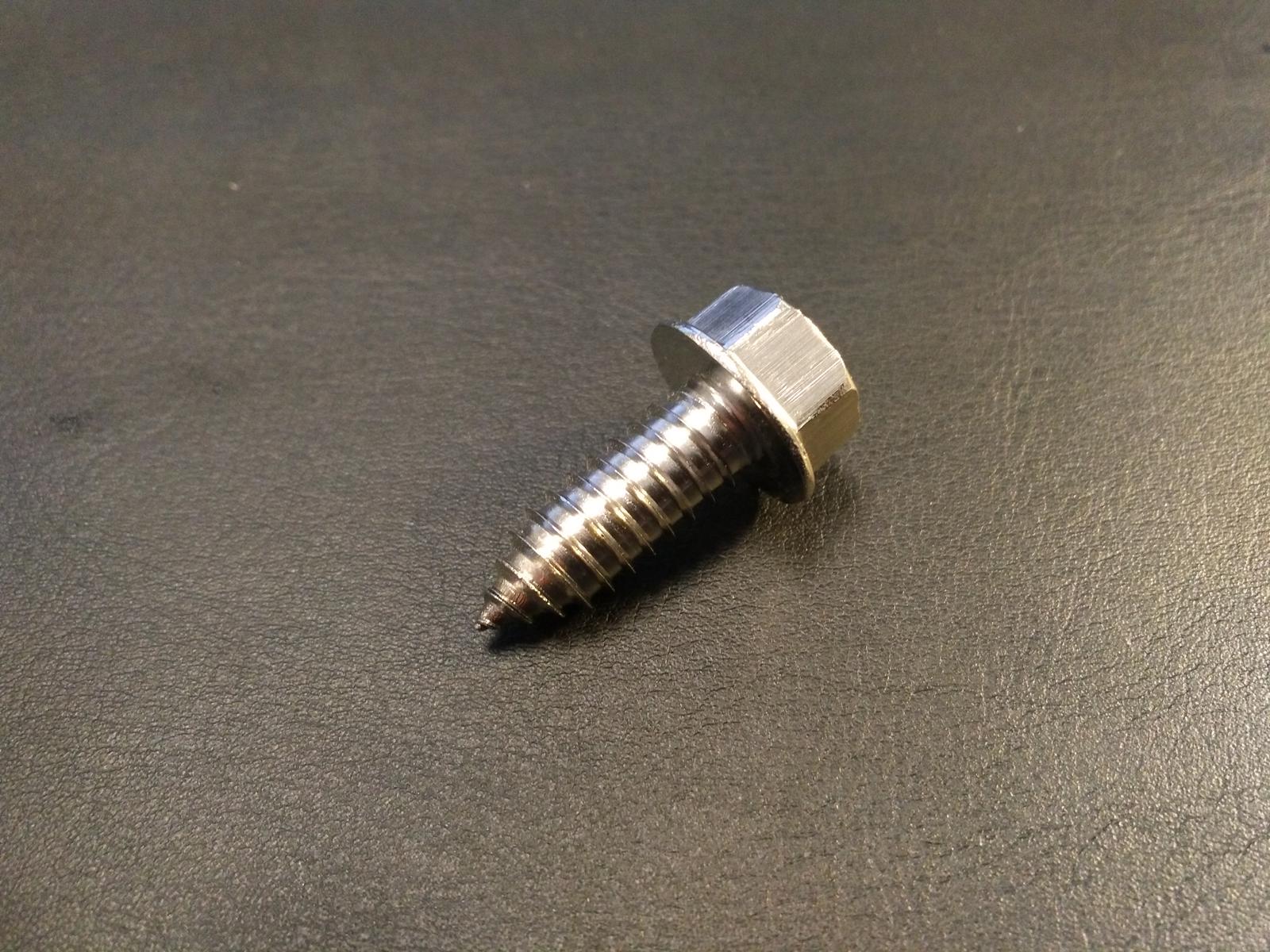

FIberglassAnchor

3/8x1" Hex Washer Head 18-8 SS Self Tapping Screw for installing in fiberglass structure

1 in.
$7.67
DOM 316/WedgeAnchor

Domestic - 316 SS 2-3/4" x 3/8" Wedge Anchor Assembly

photoPDFCAD
3 in.
$13.77

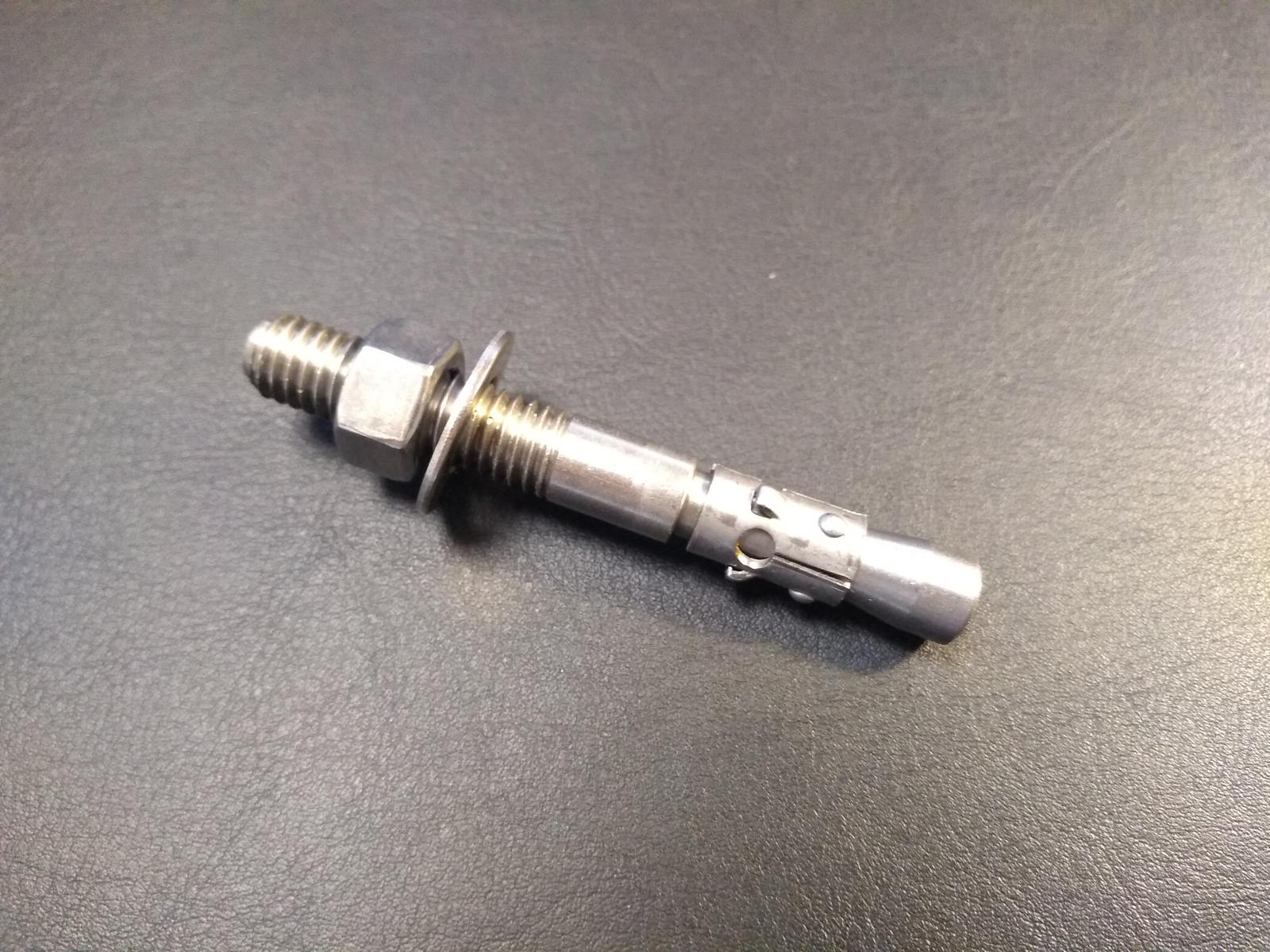

Dom-WedgeANCH

Domestic - 3"x3/8" Wedge Anchor Assembly

photoPDFCAD
3 in.
$8.37

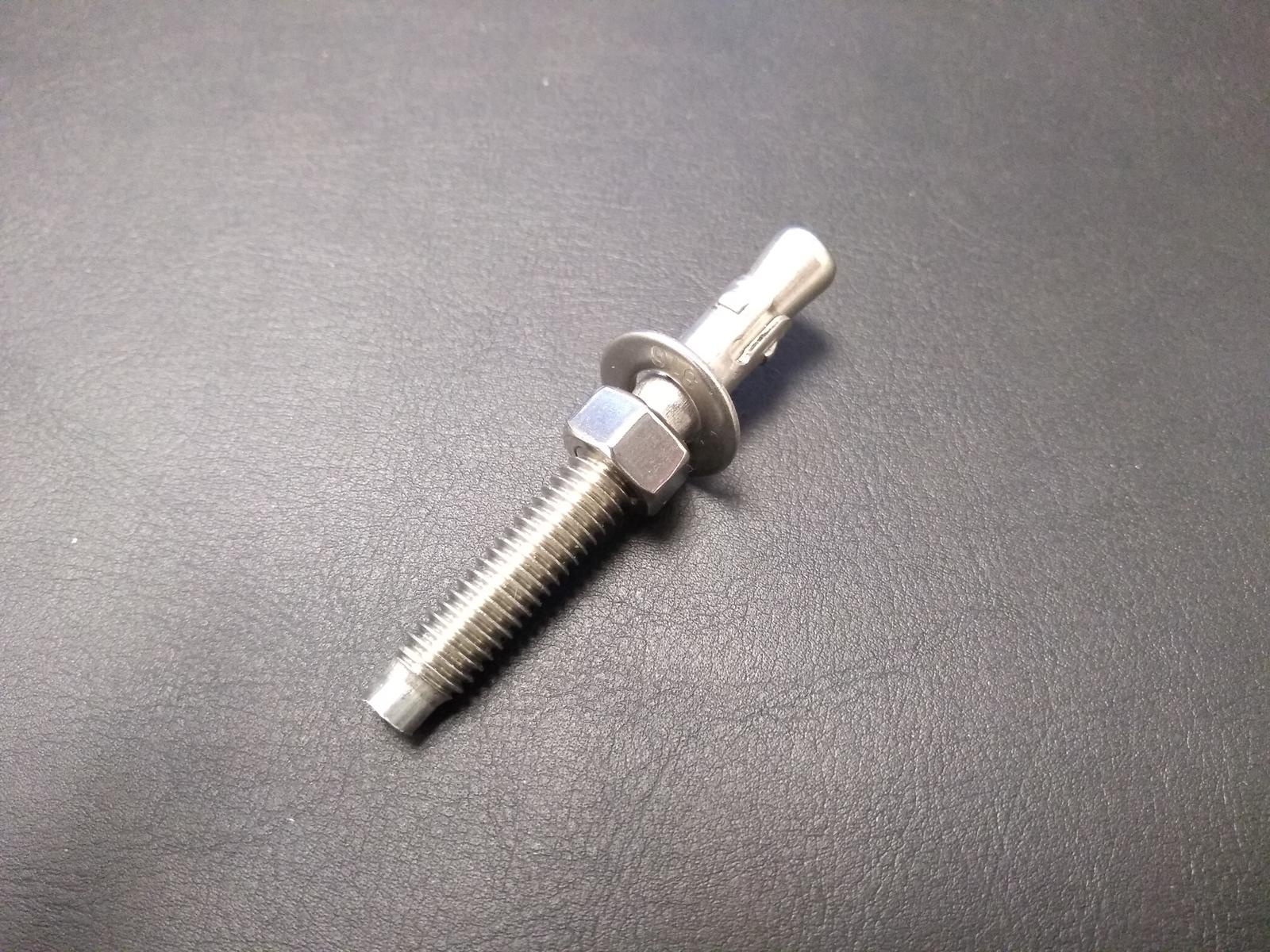

316/Wedge Anchor

316SS 3"x3/8" Anchor Assembly for large Drop Bowls

photoPDFCAD
3 in.
$11.96
ANCH

304 SS 3/8" x 1" tamp-in lead expansion anchor assembly

photoPDFCAD
1 in.
0.13 lb.
$3.46

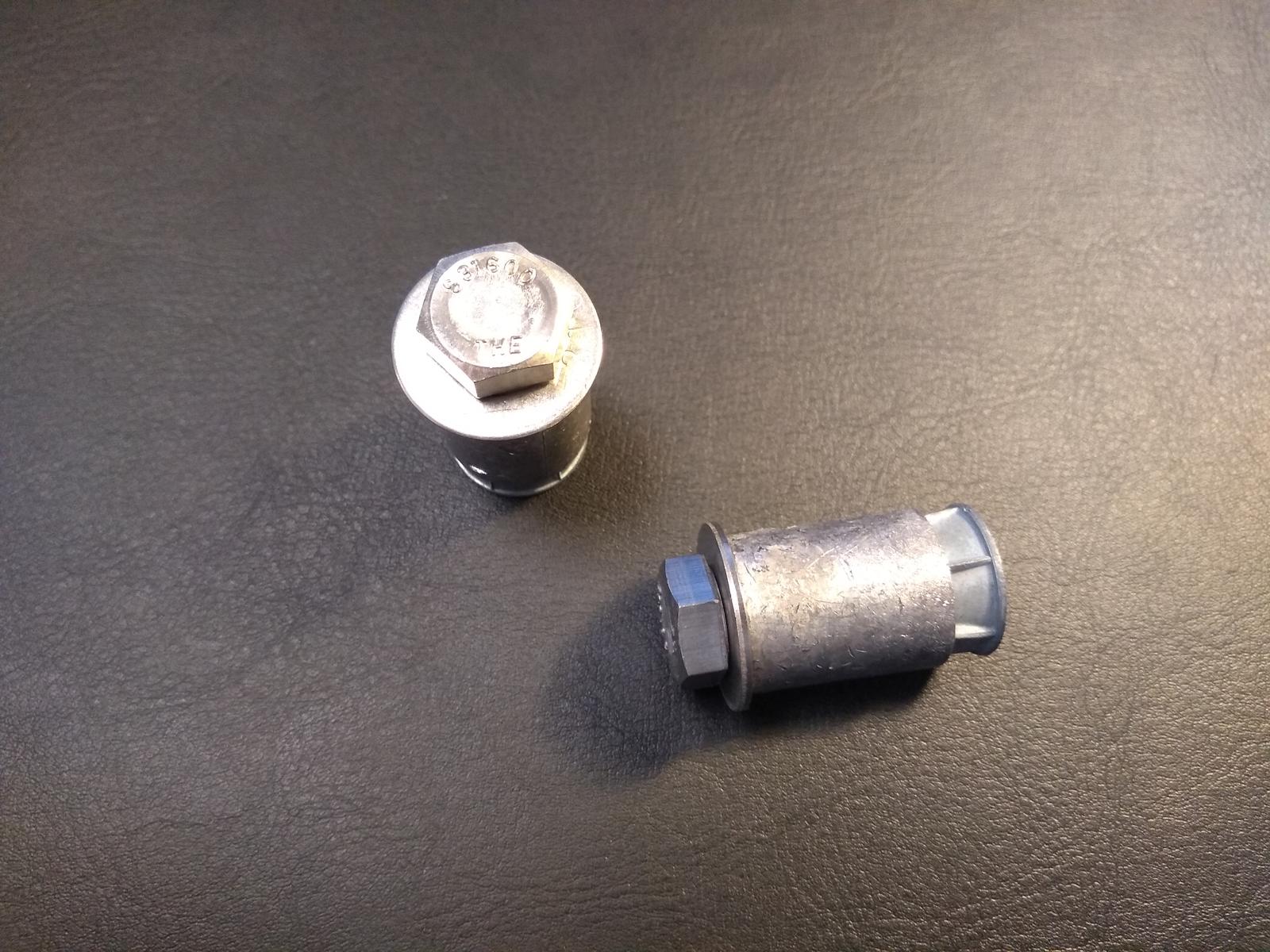

316/ANCH

316 SS 3/8" x 1" tamp-in lead expansion anchor assembly

photoPDFCAD
1 in.
$5.71

The RELINER Modular Manhole Invert System is a series of marine grade fiberglass stock parts used to create durable smooth manhole invert channels for optimum flow conditions, thus producing factory quality flumes in the field regardless of site conditions.  Contact RELINER for assistance in selecting the proper system components for your application.    Parts are selected based on the unique configuration of each manhole.   Please see Channels for information and ordering.   For estimating purposes, the following pricing applies to typical manholes:

  • A Channels - 8" Flumes for use with 4", 6" and 8" pipes
    • 4' dia manhole with 1 inlet and an outlet - $586.99
    • 4' dia manhole with 2 inlets and an outlet - $955.74
    • 4' dia manhole with 3 inlets and an outlet - $1505.11
  • B Channels - 12" Flumes for use with 6", 8", 10", and 12" pipes
    • 4' dia manhole with 1 inlet and an outlet - $793.94
    • 4' dia manhole with 2 inlets and an outlet - $1456.74
    • 4' dia manhole with 3 inlets and an outlet - $1915.24
  • Larger sizes available - Call
