Pipe Brackets
- Support the pipe fully
- Non corrosive—304 stainless steel or 316 stainless steel
- Durable—1 1/2" through 4" wide 11 gauge bands—3/8" dia. 18-8 hardware
- Easy to install
- Fully adjustable to fit irregular surfaces
- Safe—NO protruding hardware
- CNC Laser cut for accuracy and quality control
- Attach with 3/8" S.S. bolts in non-corrosive shields
1.5" through 30" sizes in stock SDR35, Sch 40, C900, CIOD, HDPE, DN and others. Custom clamps available.
Pipe Support Brackets
304 Stainless Steel
| Part Number | Description | Width | Approximate Range | Weight | Price |
|---|---|---|---|---|---|
|
1.5SS40 |
304 SS 1.5 I.D. Pipe Bracket. Fits Sch40, 80, 160, 200, DN40 |
1.50 in. |
1.82-2.00 in. |
1.00 lb. |
$66.75 |
|
2SS40 |
304 SS 2'' I.D. Pipe Bracket. Fits Sch40, 80, 160, 200 DN50 |
1.50 in. |
2.25-2.60 in. |
1.00 lb. |
$70.06 |
|
2.5SS40 |
304 SS 2.5 I.D. Pipe Bracket. Fits Sch40, 80, 160 |
1.50 in. |
2.75-3.00 in. |
1.00 lb. |
$70.06 |
|
3SS40 |
304 SS 3.5 I.D. Pipe Bracket. Fits Sch40, 80, 160, 200, DN80 |
1.50 in. |
3.34-3.70 in. |
1.00 lb. |
$70.79 |
|
3.5SS40 |
304 SS Pipe Bracket for a 3.5'' Pipe. Sch40 - Fits 3'' C900 |
1.50 in. |
3.80-4.35 in. |
1.00 lb. |
$76.22 |
|
4SS35 |
304 SS Pipe Bracket for 4'' Pipe. Fits SDR 35 - Fits also 3.5 sCH 40 3''C900 |
1.50 in. |
4.00-4.35 in. |
1.00 lb. |
$76.22 |
|
4SS40-900 |
304 SS Pipe Bracket for a 4'' Pipe. Fits Sch40, C900, CIODq 4'' Ductile Iron, Dn100 |
1.50 in. |
4.35-4.85 in. |
1.00 lb. |
$76.22 |
|
4HDPE |
304 Pipe Bracket for a 4'' Pipe, Fits HDPE |
1.50 in. |
4.35-4.85 in. |
1.00 lb. |
$76.22 |
|
6SS35 |
304 SS Pipe Bracket for a 6'' PIpe. Fits SDR 35 |
1.50 in. |
6.10-6.45 in. |
1.50 lb. |
$80.36 |
|

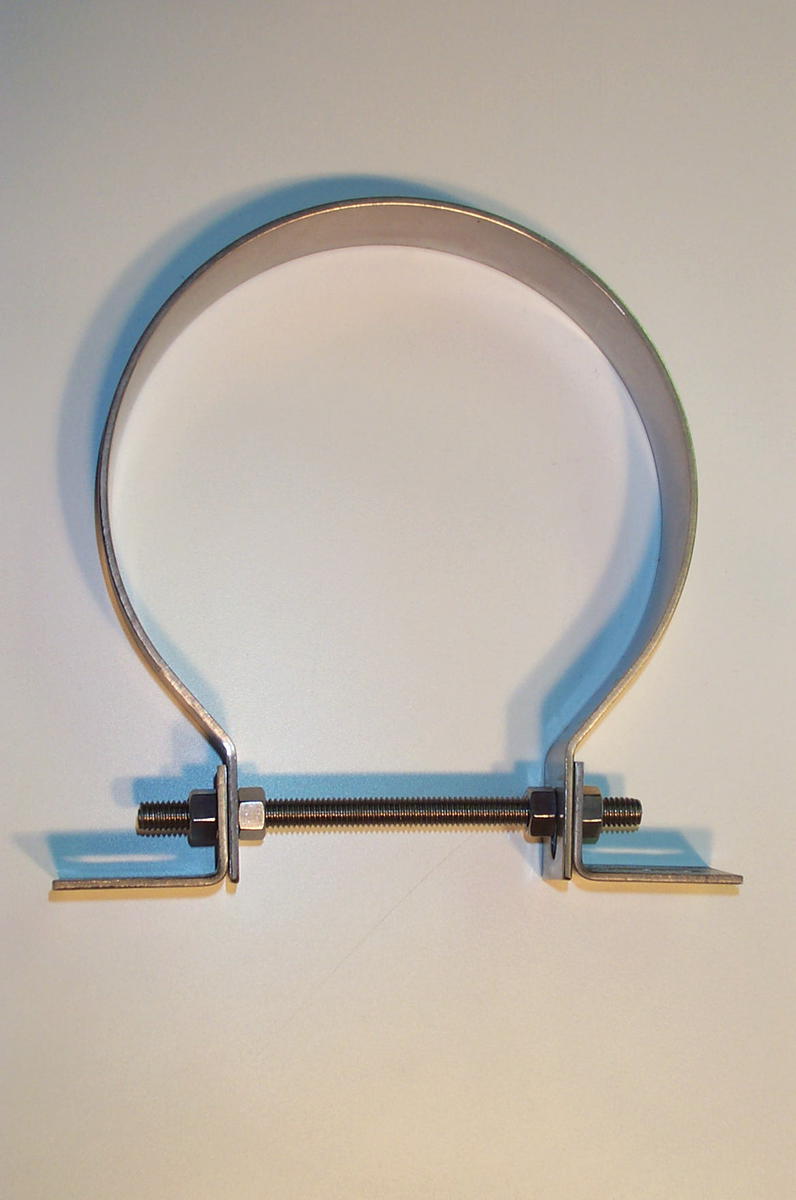

6SS40-900 |
304 SS PIpe Bracket For a 6'' Pipe. Fits Sch40, C900, Ciod, DN150 |
1.50 in. |
6.46-6.95 in. |
1.50 lb. |
$80.36 |
|
6HDPE |
304 SS Pipe Bracket for a 6'' Pipe. Fits HDPE |
1.50 in. |
6.46-6.95 in. |
1.50 lb. |
$80.36 |
|
6Truss |
304 SS Pipe Bracket for a 6'' TRUSS Pipe |
1.50 in. |
6.10-6.45 in. |
1.50 lb. |
$80.36 |
|
8SS35 |
304 SS Pipe Bracket for 8'' Pipe. Fits SDR 35 |
1.50 in. |
8.24-8.56 in. |
2.00 lb. |
$101.95 |
|
8SS40-900 |
304 SS Pipe Bracket For 8'' Pipe. Fits Schedual 40, C900, CIOD, DN200 |
1.50 in. |
8.56-9.10 in. |
2.00 lb. |
$101.31 |
|
8HDPE |
304 SS 8" Pipe Bracket fr 8" Pipe. Fits HDPE |
1.50 in. |
8.56-9.10 in. |
2.00 lb. |
$101.31 |
|
8Truss |
304 SS Pipe Bracket for a 8'' TRUSS Pipe |
1.50 in. |
9.20-9.50 in. |
2.00 lb. |
$102.51 |
|
10SS35 |
304 SS Pipe Bracket for 10" Pipe. Fits SDR 35 |
1.50 in. |
10.25-10.60 in. |
2.00 lb. |
$120.46 |
|
10SS40-900 |
304 SS Pipe Bracket for 10" Pipe. Fits Sch40, C900, CIOD, DN250 |
1.50 in. |
10.65-11.15 in. |
2.00 lb. |
$123.57 |
|
10HDPE |
304 SS 10" Pipe Bracket for 10" Pipe. Fits HDPE |
2.00 in. |
11.40-11.91 in. |
2.00 lb. |
$135.07 |
|
10Truss |
304 SS Pipe Bracket for 10" Pipe. Fits 10" Truss Pipe |
2.00 in. |
11.40-11.91 in. |
2.00 lb. |
$135.07 |
|
12SS35 |
304 SS Pipe Bracket for 12" Pipe. Fits SDR 35 and 10" Truss Pipe |
2.00 in. |
12.34-12.66 in. |
3.00 lb. |
$135.07 |
|
12SS40 |
304 SS Pipe Bracket for 12" Pipe. Fits Sch40 13.2 OD, DN300 |
2.00 in. |
12.60-13.00 in. |
3.50 lb. |
$144.07 |
|
12SS900 |
304 SS Pipe Bracket for 12" Pipe. Fits C900 13.2 OD |
2.00 in. |
13.00-13.25 in. |
3.40 lb. |
$144.07 |
|
12HDPE |
304 SS Pipe Bracket for 12" HDPE Pipe 14.3OD |
2.00 in. |
14.25-14.75 in. |
4.00 lb. |
$173.25 |
|
12Truss |
304 SS Pipe Bracket for 12" Truss Pipe |
2.00 in. |
13.90-14.25 in. |
4.00 lb. |
$187.15 |
|
14SS40 |
304 SS Pipe Bracket for 14" Sch40 Pipe, DN350 |
2.00 in. |
13.90-14.25 in. |
4.00 lb. |
$187.15 |
|
14SS900 |
304 SS 14" Bracket Fits C900 |
2.00 in. |
15.14-15.50 in. |
4.00 lb. |
$187.15 |
|
15SS35 |
304 SS Pipe Bracket for 15" Pipe. Fits SDR35 & 14 CIOD |
2.00 in. |
15.14-15.50 in. |
4.00 lb. |
$187.15 |
|
15HDPE |
304 SS 15" HDPE Pipe adjustable Bracket Fits 17.84" - 18.25" od |
3.00 in. |
17.84-18.25 in. |
7.00 lb. |
$227.68 |
|
16SS40 |
304 SS Pipe Bracket for 16" Pipe. Fits Sch 40, DN400 |
2.00 in. |
15.50-16.25 in. |
4.00 lb. |
$200.67 |
|
16SS900 |
304 SS Pipe Bracket for for 16" C900, CIOD, ductile iron pipe |
3.00 in. |
17.24-17.60 in. |
7.00 lb. |
$230.61 |
|
18SS35 |
304 SS Pipe Bracket for 18" Pipe. Fits SDR35 |
3.00 in. |
18.55-18.90 in. |
7.00 lb. |
$230.61 |
|
18SS40 |
304 SS Pipe Bracket for 18" Pipe. Sch40, DN450 |
3.00 in. |
17.84-18.25 in. |
7.00 lb. |
$230.61 |
|
18SS900 |
304 SS Pipe Bracket for 18" Pipe. Fits C900, CIOD |
3.00 in. |
19.35-19.70 in. |
7.00 lb. |
$230.61 |
|
18FG |
304 SS Pipe Bracket for 17.696" OD Pipe (Fiberglass) |
3.00 in. |
17.24-17.75 in. |
7.00 lb. |
$230.61 |
|
18HDPE |
304 SS 18" Pipe Bracket for 18" Pipe. Fits HDPE |
3.00 in. |
21.85-22.30 in. |
8.00 lb. |
$252.81 |
|
20SS40 |
304 SS Pipe Bracket for 20" Sch40 pipe, DN500 |
3.00 in. |
19.80-21.70 in. |
8.00 lb. |
$252.81 |
|
20Ductile |
304 SS Pipe Bracket for 20" ductile iron pipe |
3.00 in. |
19.80-21.70 in. |
8.00 lb. |
$252.81 |
|
21SS35 |
304 SS Pipe Bracket for 21" Pipe 3" wide. Fits SDR 35 |
3.00 in. |
21.85-22.30 in. |
8.00 lb. |
$252.81 |
|
24SS35 |
304 SS Pipe Bracket - 3" width single slot style. Fits SDR 35 |
3.00 in. |
24.50-25.00 in. |
9.00 lb. |
$275.22 |
|
24SS40 |
304 SS 24" Bracket - 3" width single slot sytle. Fits Sch 40, DN600 |
3.00 in. |
23.50-24.50 in. |
9.00 lb. |
$275.22 |
|
24CIOD |
304 SS 24" Bracket - 3" width single slot style. Fits CIOD |
3.00 in. |
25.00-26.50 in. |
9.00 lb. |
$329.87 |
|
24HDPE |
304 SS 24" Pipe Bracket for 24" Pipe 4" width double slot sytle. Fits HDPE |
4.00 in. |
27.75-28.50 in. |
9.00 lb. |
$407.83 |
|
27SS35 |
304 SS 27" Pipe Bracket 4" width double slot style. Fits SDR 35 & 24" HDPE |
4.00 in. |
27.75-28.50 in. |
13.00 lb. |
$407.83 |
|
30SS35 |
304 SS 30" Pipe Bracket - 4" width double slot style. Fits SDR 35 |
4.00 in. |
31.78-32.30 in. |
16.00 lb. |
$420.41 |
|
30SS40 |
304 SS 30" Pipe Bracket for 30" Pipe. Fits SCH 40 |
4.00 in. |
29.75-30.30 in. |
16.00 lb. |
$420.41 |
|
30HDPE |
304 SS 30" Pipe Bracket for 30" Pipe. Fits HDPE |
4.00 in. |
35.00-37.00 in. |
16.00 lb. |
$474.18 |
|
36SS40 |
304 SS 36.5" Pipe Bracket for 36" Pipe. Fits Fiberglass and SCH40 |
4.00 in. |
35.00-37.00 in. |
18.00 lb. |
$474.18 |
|
36FG |
304 SS Pipe Bracket for Fiberglass |
4.00 in. |
35.00-37.00 in. |
18.00 lb. |
$474.18 |
- Clamp and bracket is type 304 stainless steel, 11 gauge (.1196")
- 3/8" dia. pinch bolt and nuts are type 18-8 stainless steel
- Wide range of sizes for SDR35, Sch40, CIOD-C900 stocked for 1 1/2"-30"
Other sizes available.
Pipe Support Brackets
316 Stainless Steel
| Part Number | Description | Width | Approximate Range | Weight | Price |
|---|---|---|---|---|---|
|
316/3.5SS40 |
316 SS Pipe Bracket for a 3.5'' Pipe. Sch40 - Fits 3'' C900 |
1.50 in. |
3.80-4.35 in. |
1.00 lb. |
$90.75 |
|
316/4SS35 |
316 SS Pipe Bracket for 4'' pipe. Fits SDR 35 - Fits also 3.5 Sch 40 and 3'' C900 |
1.50 in. |
4.00-4.35 in. |
1.00 lb. |
$90.75 |
|
316/4SS40 |
316 SS Pipe Bracket for a 4'' Pipe. Fits Sch40, C900, CIODq 4'' Ductile Iron, Dn100 |
1.50 in. |
4.35-4.85 in. |
1.50 lb. |
$93.20 |
|
316/4HDPE |
316 SS 4" Pipe Bracket for 4" Pipe. Fits HDPE |
1.50 in. |
4.35-4.85 in. |
1.00 lb. |
$93.20 |
|
316/6SS35 |
316 SS Pipe Bracket for 6'' Pipe. Fits SDR 35 |
1.50 in. |
6.10-6.45 in. |
1.50 lb. |
$97.51 |
|
316/6SS40 |
316 SS PIpe Bracket For a 6'' Pipe. Fits Sch40, C900, Ciod, DN150 |
1.50 in. |
6.46-6.95 in. |
1.50 lb. |
$94.91 |
|
316/6HDPE |
316 SS 6" Pipe Bracket for 6" Pipe. Fits HDPE |
1.50 in. |
6.46-6.95 in. |
1.50 lb. |
$94.91 |
|
316/6Truss |
316 SS 6" Pipe Bracket for 6" Pipe. Fits Truss |
1.50 in. |
6.10-6.45 in. |
1.50 lb. |
$97.51 |
|
316/8SS35 |
316 SS Pipe Bracke for 8" Pipe. Fits SDR 35 |
1.50 in. |
8.24-8.56 in. |
2.00 lb. |
$112.90 |
|
316/8SS40 |
316 SS Pipe Bracket For 8'' Pipe. Fits Sch40, C900, CIOD, DN200 |
1.50 in. |
8.56-9.10 in. |
2.00 lb. |
$112.13 |
|
316/8HDPE |
316 SS 8" Pipe Bracket for 8" Pipe. Fits HDPE |
1.50 in. |
8.56-9.10 in. |
2.00 lb. |
$112.13 |
|
316/8Truss |
316 SS 8" Pipe Bracket for 8" Pipe. Fits Truss |
1.50 in. |
9.20-9.50 in. |
2.00 lb. |
$112.13 |
|
316/10SS35 |
316 SS Pipe Bracke for 10" Pipe. Fits SDR 35 |
1.50 in. |
10.25-10.60 in. |
1.50 lb. |
$136.67 |
|
316/10SS40 |
316 SS Pipe Bracket for 10" Pipe. Fits Sch40, C900, CIOD, DN250 |
1.50 in. |
10.65-11.15 in. |
2.00 lb. |
$136.67 |
|
316/10HDPE |
316 SS 10" Pipe Bracket for 10" Pipe. Fits HDPE |
2.00 in. |
11.40-11.91 in. |
2.00 lb. |
$144.06 |
|
316/10Truss |
316 SS Pipe Bracket for 10" Pipe. Fits 10" Truss Pipe |
2.00 in. |
11.40-11.91 in. |
2.00 lb. |
$144.06 |
|
316/12SS35 |
316 SS Pipe Bracke for 12" Pipe. Fits SDR 35 |
2.00 in. |
12.34-12.66 in. |
3.00 lb. |
$155.09 |
|
316/12SS40 |
316 SS Pipe Bracket for 12" Pipe. Fits Sch40 13.2 OD, DN300 |
2.00 in. |
12.60-13.25 in. |
3.50 lb. |
$155.09 |
|
316/12HDPE |
316 SS Pipe Bracket for 12" HDPE Pipe 14.3OD |
2.00 in. |
14.25-14.75 in. |
4.00 lb. |
$224.11 |
|
316/12Truss |
316 SS Pipe Bracket for 12" Truss Pipe |
2.00 in. |
13.90-14.25 in. |
4.00 lb. |
$224.11 |
|
316/14SS40 |
316 SS Pipe Bracket for 14" Sch40 Pipe, DN350 |
2.00 in. |
13.90-14.25 in. |
4.00 lb. |
$224.11 |
|
316/14SS900 |
316 SS 14" Bracket Fits C900 |
2.00 in. |
15.14-15.50 in. |
4.00 lb. |
$224.11 |
|
316/15SS35 |
316 SS Pipe Bracket for 15" Pipe. Fits SDR35 & 14 CIOD |
2.00 in. |
15.14-15.50 in. |
4.00 lb. |
$224.11 |
|
316/15HDPE |
316 SS 15" HDPE Pipe adjustable Bracket Fits 17.84" - 18.25" od |
3.00 in. |
17.84-18.25 in. |
7.00 lb. |
$273.21 |
|
316/16SS40 |
316 SS Pipe Bracket for 16" Pipe. Fits Sch 40, DN400 |
2.00 in. |
15.50-16.25 in. |
4.00 lb. |
$225.74 |
|
316/16SS900 |
316 SS Pipe Bracket for for 16" C900, CIOD, ductile iron pipe |
3.00 in. |
17.24-17.60 in. |
7.00 lb. |
$273.21 |
|
316/18SS35 |
316 SS Pipe Bracket for 18" Pipe. Fits SDR35 |
3.00 in. |
18.55-18.90 in. |
7.00 lb. |
$273.21 |
|
316/18SS40 |
316 SS Pipe Bracket for 18" Pipe. Sch40, DN450 |
3.00 in. |
17.84-18.25 in. |
7.00 lb. |
$273.21 |
|
316/18SS900 |
316SS Pipe Bracket for 18" Pipe. Fits C900, CIOD |
3.00 in. |
19.35-19.70 in. |
7.00 lb. |
$273.21 |
|
316/18FG |
316 SS Pipe Bracket for 17.696" OD Pipe (Fiberglass) |
3.00 in. |
17.24-17.75 in. |
7.00 lb. |
$273.21 |
|
316/24SS35 |
316 SS 24" Bracket - 3" width single slot style. Fits SDR 35. |
3.00 in. |
24.50-25.00 in. |
9.00 lb. |
$352.27 |
|
316/24CIOD |
304 SS 24" Bracket - 3" width single slot style. Fits CIOD |
3.00 in. |
25.00-26.50 in. |
9.00 lb. |
$352.27 |
|
316/24SS40 |
316 SS 24" Bracket - 3" width single slot style. Fits SCH 40, DN600 |
3.00 in. |
23.50-24.50 in. |
9.00 lb. |
$352.27 |
|
316/24SS40 |
316 SS 24" Bracket - 3" width single slot sytle. Fits Sch 40, DN600 |
3.00 in. |
23.50-24.50 in. |
9.00 lb. |
$352.27 |
|
316/20SS40 |
316 SS Pipe Bracket for 20" Sch40 pipe, DN500 |
3.00 in. |
19.80-21.70 in. |
8.00 lb. |
$347.12 |
|
316/20SSDuctile |
316 SS Pipe Bracket for 20" ductile iron pipe |
3.00 in. |
19.80-21.70 in. |
8.00 lb. |
$347.12 |
|
316/21SS35 |
316 SS Pipe Bracket for 21" Pipe 3" wide. Fits SDR 35 |
3.00 in. |
21.85-22.30 in. |
8.00 lb. |
$347.12 |
SPECIFICATIONS:
- Clamp and bracket is type 316 stainless steel, 11 gauge (.1196")
- 3/8" dia. pinch bolt and nuts are type 316 stainless steel
- Wide range of sizes for SDR35, Sch40, CIOD-C900 stocked for 3.5" - 12"
